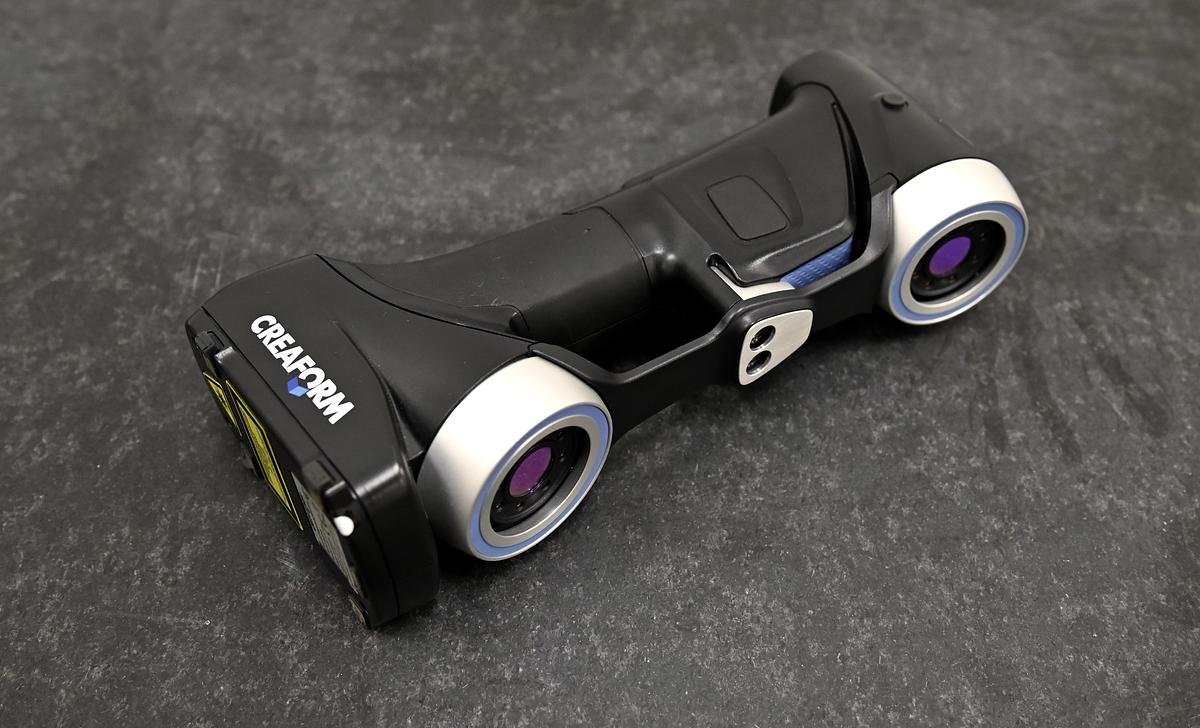

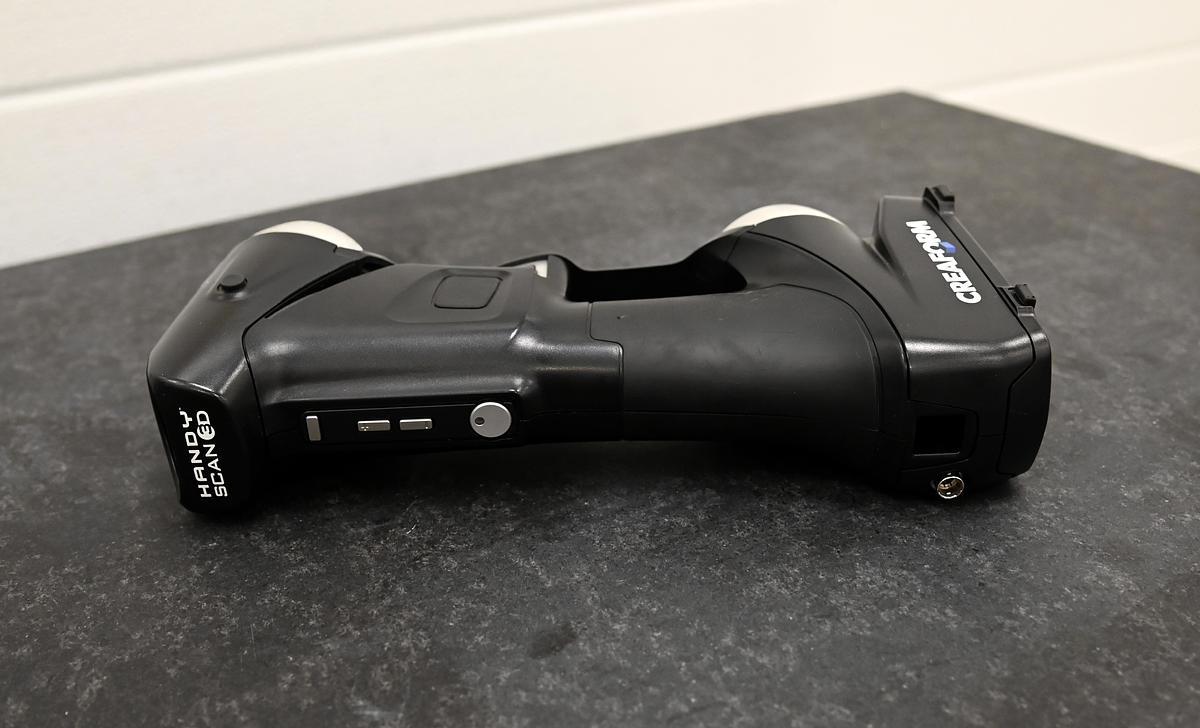

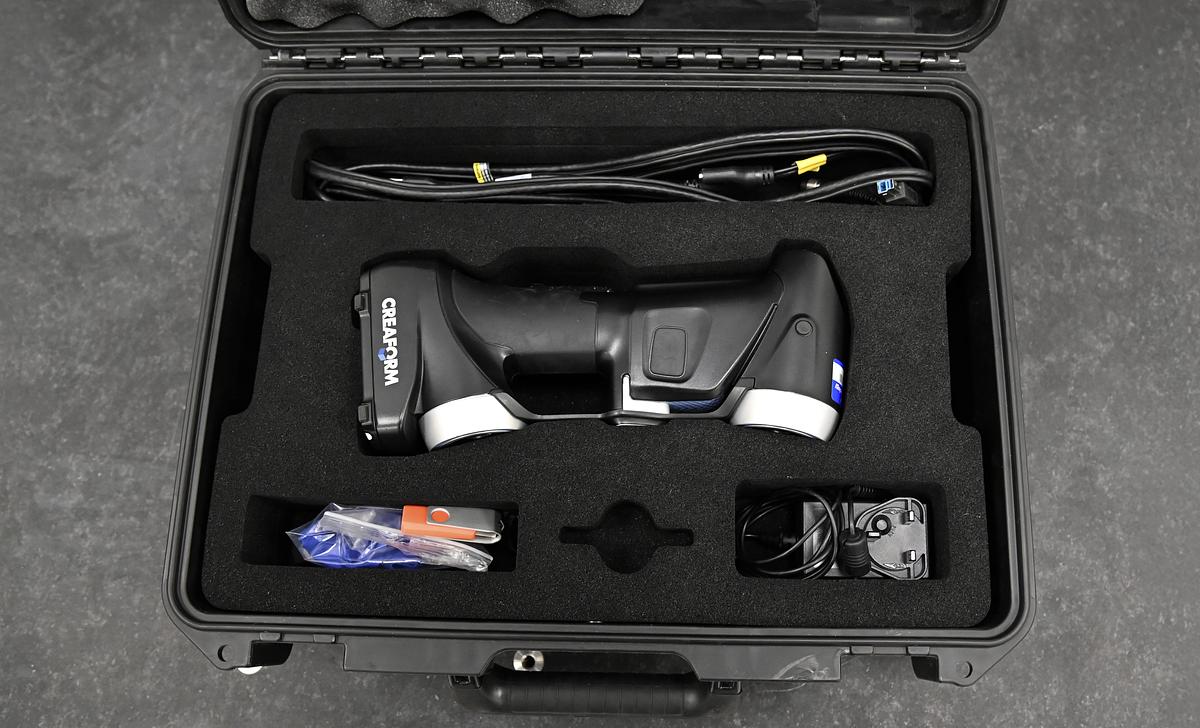

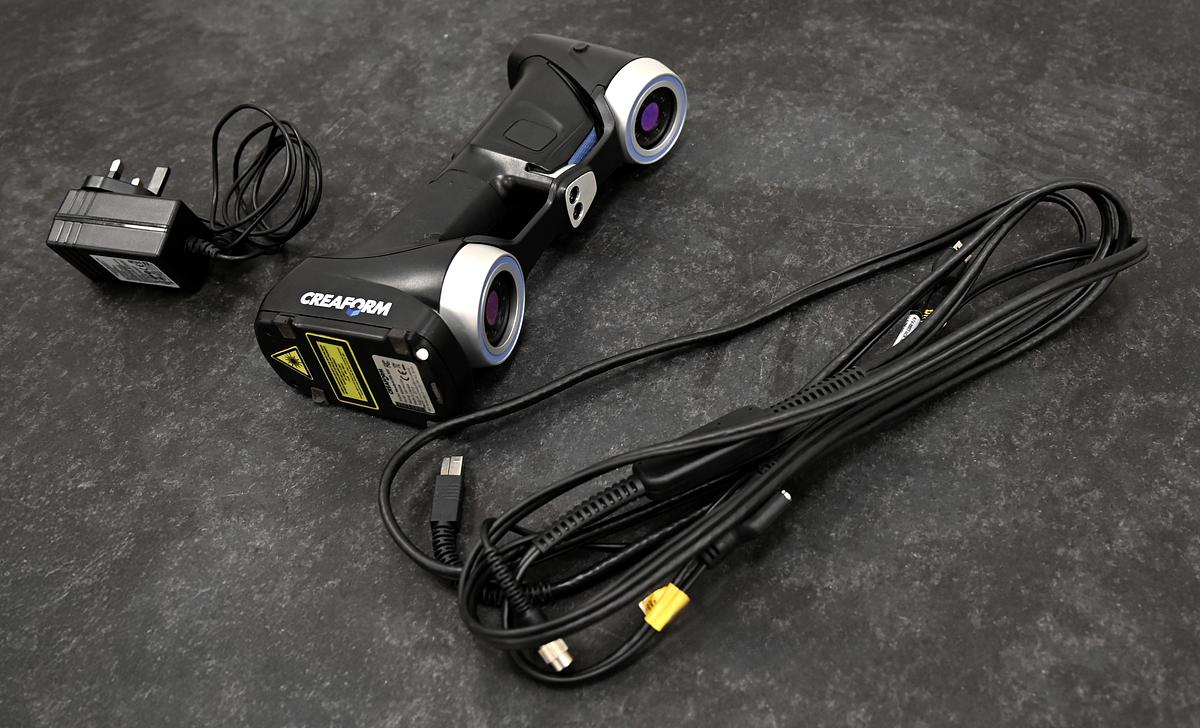

CREAFORM HANDYSCAN 300 3D SCANNER

The HandySCAN 300 3D handheld scanner has been optimised to meet the needs of product development and engineering professionals looking for an effective and reliable way to acquire 3D measurements of physical objects.

The HandySCAN 3D scanners: Your best ally at all stages of your product lifecycle management

Concept

Requirement and specifications

– Competitive product analysis

– Measurement of product environment or connecting/​surrounding parts

– Measurement of existing parts for aftermarket or custom equipment

Concept design

– Clay model measurement/​reverse engineering

– Models and mock-ups measurement/reverse engineering

– Styling and aesthetics

Concept prototyping

- Integration of prototype modifications into CAD file

- Form study, proof-of-concept prototypes

- Ergonomy prototypes

Design

CAD design

– 3D scan-to-CAD

– Reverse engineering (extracting design-intent)

– Packaging design

Prototyping

– Rapid prototyping/manufacturing

– Integration of prototype modifications into CAD file

– Prototype inspection

Testing, simulation and analysis

– Finite element analysis (FEA)

– Interference analysis

– Deformation, geometry analysis

Manufacturing

Tooling design

– Reverse engineering of dies, moulds, fixtures, jigs and patterns

– Update of CAD file to reflect as-built tooling measurements

– Tooling validation/Inspection

Assembly/production

– Virtual assembly

– Tool/Robot path programming

– Part assessment before machining

Quality control

– First article inspection (FAI)

– Part-to-CAD inspection

– Supplier quality inspection

Servicing

Documentation

– As-built documentation of parts/tooling

– Marketing presentations, 3D training systems, serious gaming

– Digital archiving

Maintenance, repair and overhaul (MRO)

– Wear and tear analysis

– Custom repairs/​modification

– As-built documentation of parts/tooling before maintenance

Replacement/recycling

– Reverse engineering for developing replacement/restoration parts

– Planning of complex assemblies disassembly/​dismantling

HandySCAN 300 technical specifications

Weight: 0.85 kg

Dimensions: 122 x 77 x 294 mm

Measurement rate: 205,000 measures/s

Scanning area: 225 x 250 mm

Light source: 3 laser crosses

Laser class: II (eye-safe)

Resolution: 0.100 mm

Accuracy: Up to 0.040 mm

Volumetric accuracy*: 0.020 mm + 0.100 mm/m

Volumetric accuracy (with Maxshot 3D)*: 0.020 mm + 0.025 mm/m

Stand-off distance: 300 mm

Depth of field: 250 mm

Part size range (recommended): 0.1 – 4 m

Software: VXelements

Output formats: .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr

Connection standard: 1 X USB 3.0

Operating temperature range: 15-40 °C

Operating humidity range (non-condensing): 10-90%

*Based on the ISO 10360 standard, volumetric accuracy is defined as a size-dependent value.

Performance and Hardware Specifications



Please view the technical sheet here: View more details.

Delivery

Delivery is to be confirmed and is based on UK location. If outside the UK, you will need to arrange your own shipping.

Exclusions

Granite rolling cart featured in photos is not included.
