SCANOLOGY TRACKSCAN SHARP

High‑Volume Optical 3D Tracking System for Large‑Scale Metrology

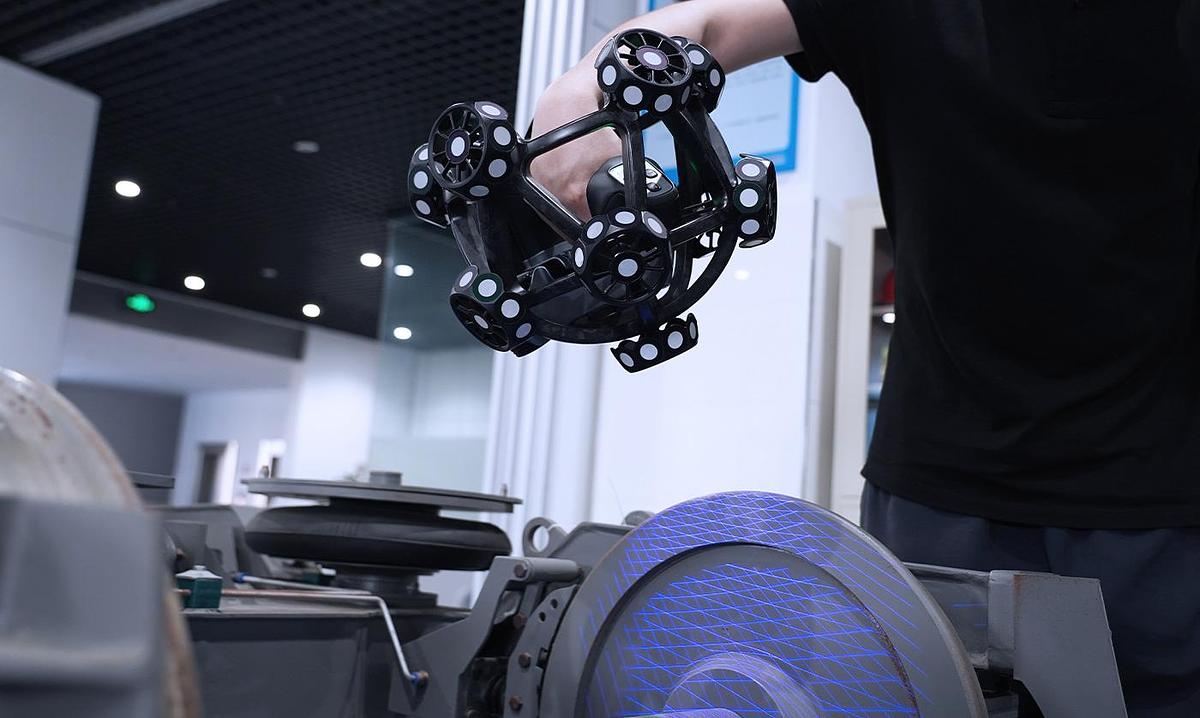

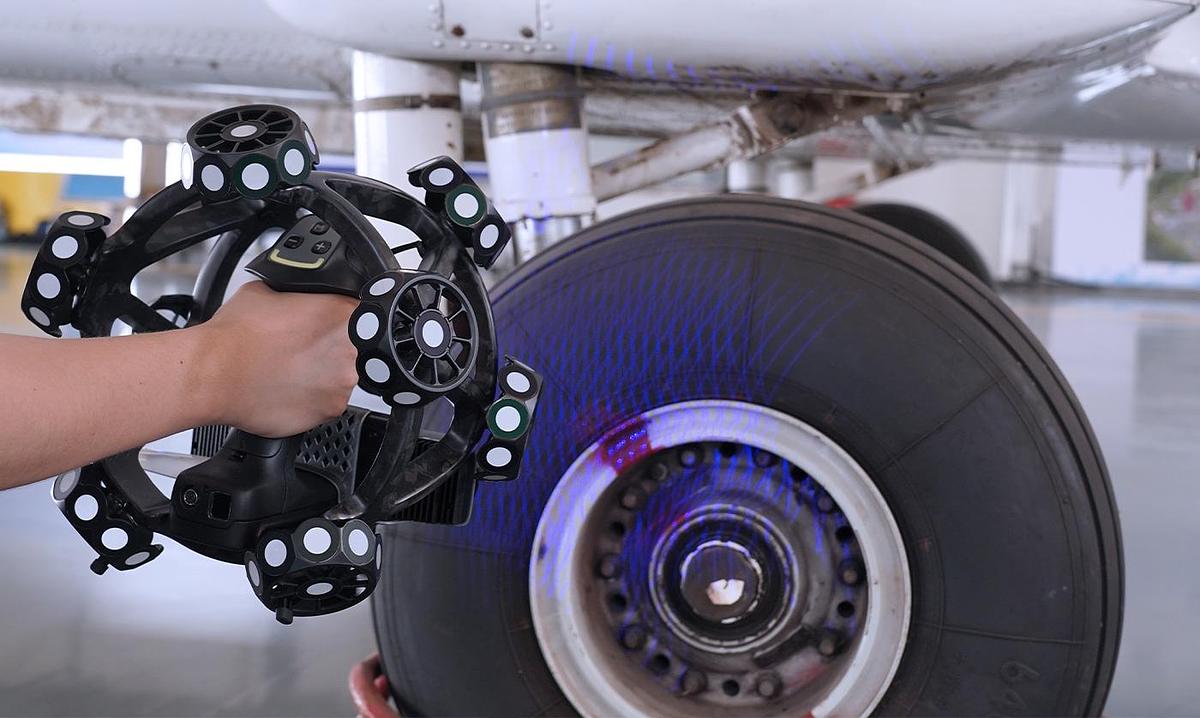

TrackScan Sharp is Scanology’s next‑generation optical 3D measurement system. It combines a handheld i‑Scanner with a 25‑megapixel i‑Tracker and advanced edge‑computing to deliver long‑range, high-speed scanning across very large volumes. Designed for large-scale industrial parts, it enables stable, precise measurement without the need to constantly reposition trackers — ideal for aerospace, energy, and heavy-industry environments.

Key Metrics at a Glance

- Tracking Distance (per i‑Tracker): up to 8.5 m

- Maximum High-Precision Volume: up to 135 m³

- Measurement Rate: up to 6,000,000 measurements/s

- Volumetric Accuracy (10.4 m³): ≈ 0.048 mm

Highlights and Key Features

Long-Range Tracking

Maximum tracker range of up to 8.5 m allows scanning of very large parts from a distance.

Large‑Volume Precision

High-precision measurement range up to 135 m³, with robust algorithms and stable structure.

Edge Computing On‑Board

The i‑Tracker processes data independently, allowing high-speed 3D coordinate output without a tethered PC.

Wireless Data Transfer

Cable-free operation is supported via on-board computing and external WNICs.

Extensive Laser Coverage

Up to 99 laser lines provide dense, rapid point cloud capture and accurate tracking.

CFFIM Structural Stability

Carbon fibre frame ensures thermal stability and durability in industrial environments.

Edge Detection Capability

Shadow‑less edge detection allows precise measurement of holes, slots, and edges.

Probe Compatibility

Supports a wireless i‑Probe for contact measurement of hard-to-reach points.

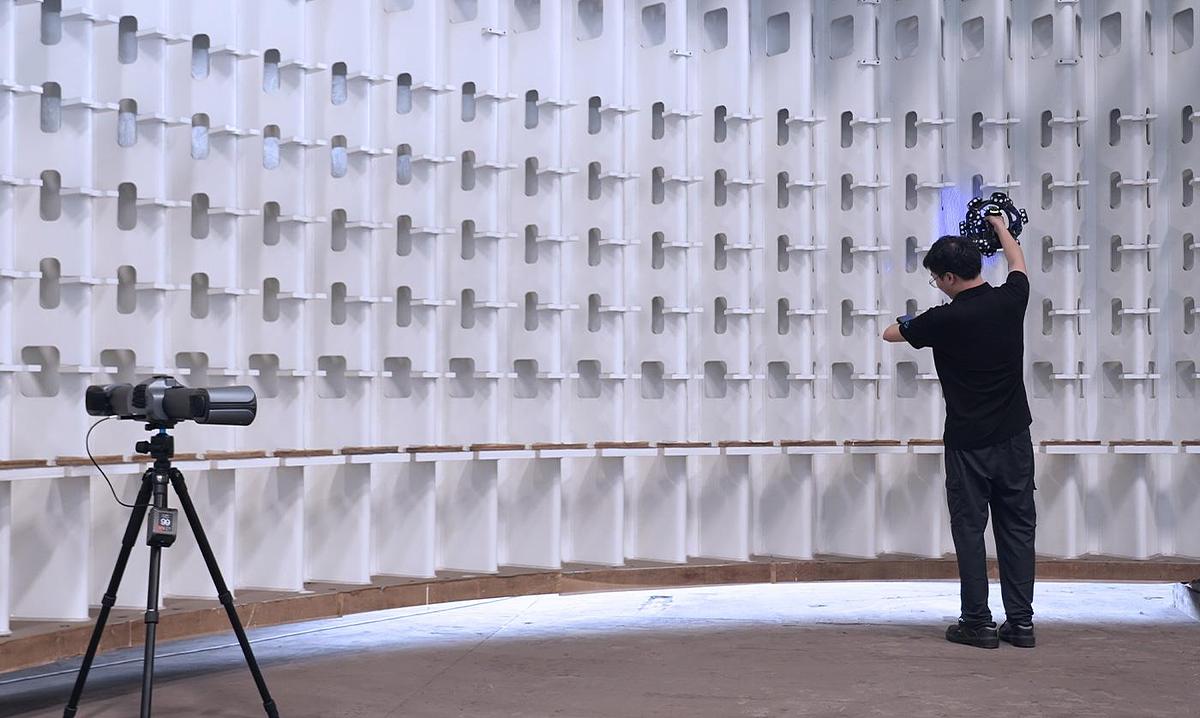

Multi‑Tracker Scalability

Additional i‑Trackers can expand the tracking volume for even larger parts.

Model Variants

Sharp‑S

Maximum Volume: up to 90–135 m³

Measurement Rate: up to 6,000,000 pts/s

Laser Lines: 81

Key Use: Large-scale industrial parts

Sharp‑E

Maximum Volume: up to 35 m³

Measurement Rate: up to 6,000,000 pts/s

Laser Lines: 99

Key Use: Ultra-high precision or smaller volumes

Please contact us for a full breakdown of differences between the Sharp‑S and Sharp‑E models so we can advise the best model variant for your requirements.
