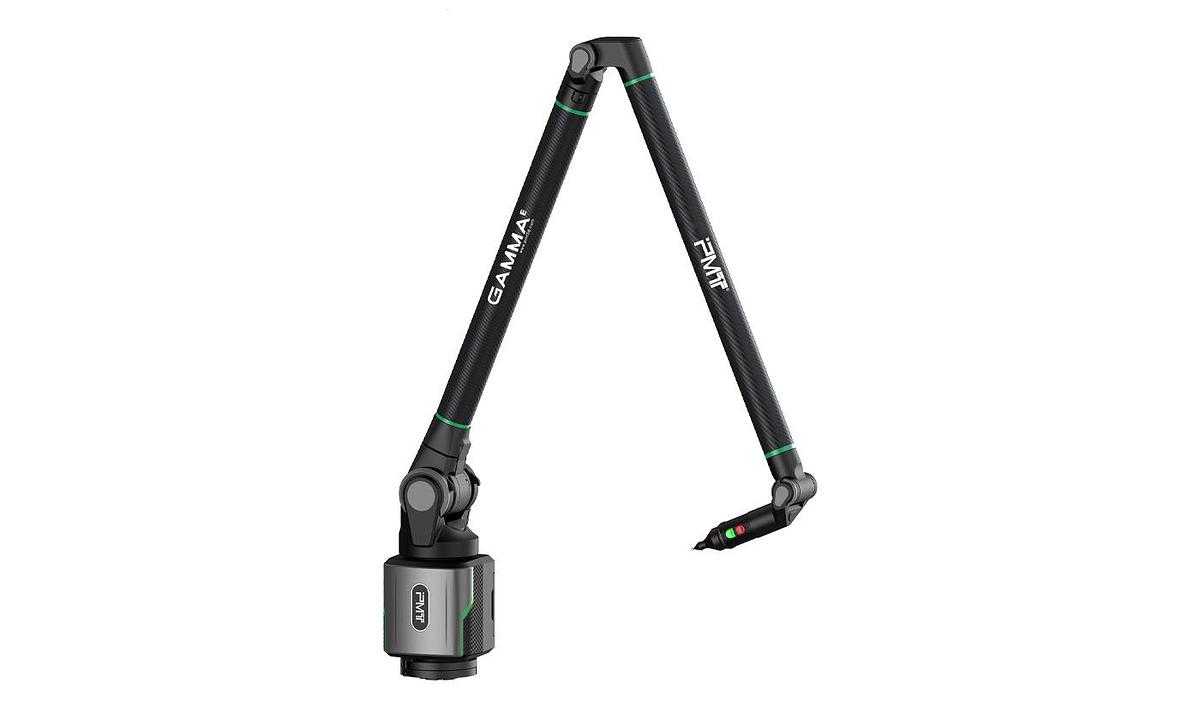

PMT GAMMA E 6-AXIS

The high accuracy PMT GAMMA E 6-Axis portable arm range covers 1.5 metres to 4.5 metres. In addition, it supports an 8-axis rotary worktable and GH/GS scan head, providing the best consistency and reliability in measurements in diversified environments. With the excellent accuracy and performance, GAMMA portable CMM targets the inspection of special-shaped workpieces and ensures customer’s leading position in quality control.

Technical Features

Balancing and Stability

External Decoupling and Internal Balancing System

The excellent balancing mechanism design offers a relaxing and balanced performance, reduces the joint load when in use, significantly enhances the stability of the portable arm and the flexibility of operation.

Tilt Diagnosis

Ensure a stable installation and the portable arm is always at its best.

Vibration Monitoring

Monitor any abnormalities during use or transportation.

Structural Designs

Dual Suspension Support Structure

Provide greater structural stability, easier maintenance, ensuring measurement accuracy and durability.

Four-jaw Quick-Mount Base Collar

Simplify the installation and dismantling process, saving time and effort.

Aerospace-grade Carbon Fibre Material

The customised new connecting rod made of carbon-fibre material has higher torsion and bending resistance, ensuring the strength and stability of the arm.

Intelligence and Convenience

Integrated Smart Probe

Support quick installation and replacement of different types of probes with no need for recalibration, improved measurement efficiency.

Smart Sensing Probe System

Optimised structure with lighter weight; compatible with different types of probes (bending tube, fork probes etc.) to meet diversified measurement needs.

Simulated Mouse

Another way to easily operate the machine.

Synchronisation and Operating Synergy

External Synchronisation Mode

Work in tandem with other devices to realise a wider measurement applications.

8-Axis Rotary Worktable

Improve measurement range and flexibility.

Connectivity and Data Transmission

Customised 5G Wi-Fi Module

Customised WI-FI module, 5G bandwidth with faster transmission rate and improved data transmission efficiency.

High-speed Wired USB Connection

Wide bandwidth and fast transmission speeds, more stable and more accurate.

Power Consumption and Battery Life

Three Modes of Power Consumption

High performance, low power consumption and ultra-low power consumption. Can support various application scenarios and meet different needs. In low-power mode, a single battery can last for about 16 hours (based on contact measurement).

Device Drivers and Software Development

Device Driver

Standard interfaces, which are convenient for the customisation and development of new functions.

Software Compatibility

Can work with the mainstream measurement software in the market and can be customised.

View the tech sheet for details on accuracy and more
