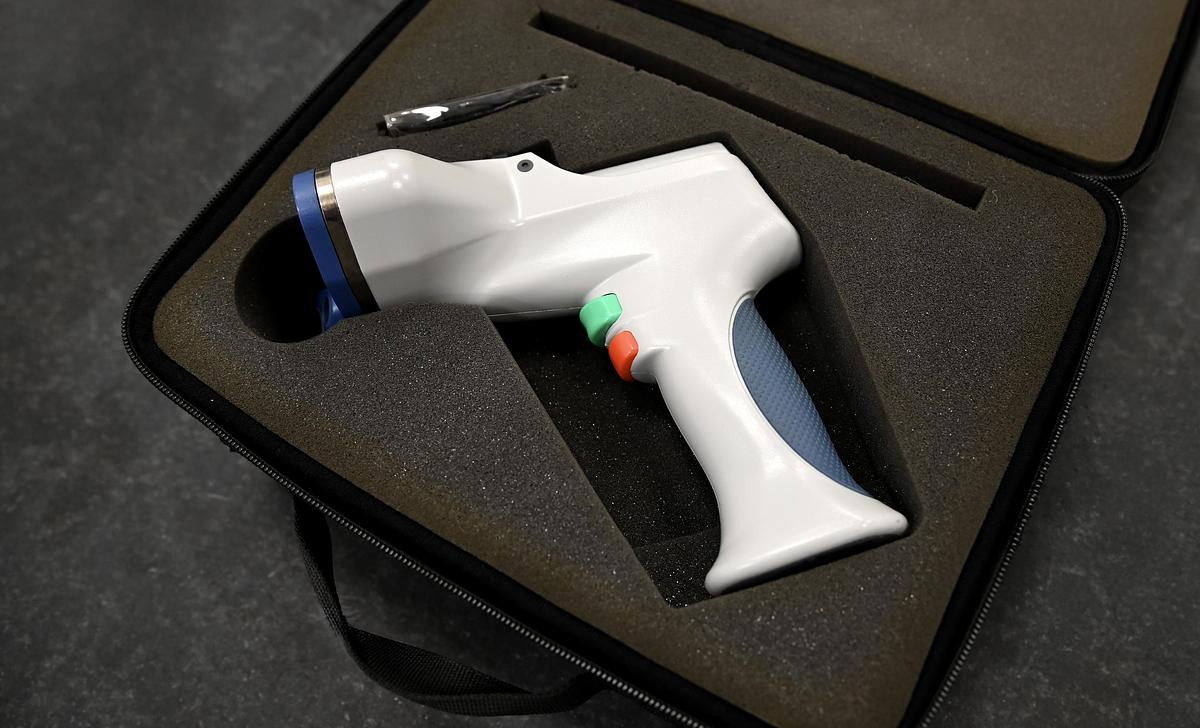

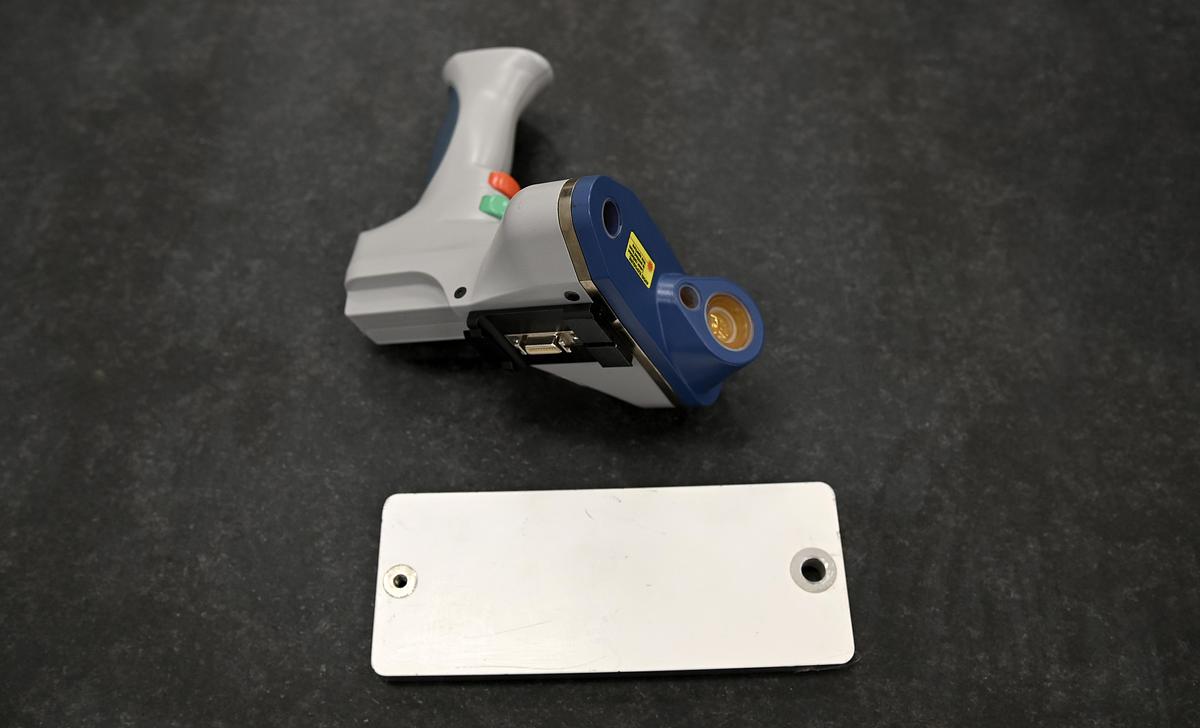

FARO REV6 HD LLP SCANNER

The FARO REV6 HD combines the flexibility and functionalities of a FARO Edge measuring arm with the high-definition Laser Line Probe HD, creating a portable contact/non-contact measurement system suitable for challenging application requirements.

The FARO REV6 HD delivers rapid point cloud collection with high resolution and accuracy without any special coatings or target placement, in a compact and easy-to-use system.

Please note: The REV6 HD LLP is only compatible with the FARO Edge arm.

Features

Rapid Scanning Speed

The extra wide scan stripe and fast frame rate boosts productivity by increasing coverage and reducing scanning time.

High Definition Data

Intricate components can be captured in fine detail as a result of the 2,000 actual points per scanline and the new blue laser featuring noise reduction technology.

Scan Challenging Materials

Seamlessly scan across diverse surface materials regardless of contrast, reflectivity or part complexity without any special coatings as a result of the improved HDR (High Dynamic Range) Mode and advanced software algorithms.

Compact and Simple to Use

Dramatically reduce required training time with the new crosshair feature and existing LED Rangefinder functionality which provides real-time scanning feedback. The small size and friendly user-interface result in a versatile and intuitive tool.

Highly Accurate and Repeatable

Reliable, repeatable and highly accurate measurement data is delivered with confidence as a result of superior optical performance.

Complete Measurement Solution

Use laser and hard probes seamlessly to inspect freeform surfaces, increasing the efficiency of inspection processes.

Fully Integrated Scanning

No need for interface box or external wiring.

Removable Laser Line Probe

LLP can be removed for better tactile measurement handling.

Wireless Scanning

The Laser Line Probe is fully compatible with the Bluetooth® or Wi-Fi technology used in the FARO Edge.

FARO Laser Line Probe Specifications

Accuracy: ±25μm (±0.0008”)

Repeatability: 25μm, 2σ (0.01”)

Stand-off: 115mm (4.5”)

Depth of field: 115mm (4.5”)

Effective scan width: Near field 80mm (3.1”)

Far field: 150mm (5.9”)

Points per line: 2,000 points/line

Minimum point spacing: 40μm, (0.0015”)

Scan rate: 280 frames/second, 280fps x 2,000 points/line = 560,000 points/sec

Laser: Class 2M

Weight: 485g (1.1lbs.)

Accuracy and repeatability specified at Full Field of View (FOV); High Accuracy mode specified at reduced FOV.

Performance and Hardware Specifications



Please view the technical sheet here: View more details.

Delivery

Delivery is to be confirmed and is based on UK location. If outside the UK, you will need to arrange your own shipping.

Exclusions

Granite rolling cart featured in photos is not included.
