SCANOLOGY KSCAN‑X

Wireless Large‑Area Optical 3D Scanner for Massive Component

KSCAN‑X from Scanology is a large‑area, wireless optical 3D scanner built for truly large-scale metrology. With its adaptive photogrammetry, dual‑battery system and robust onboard processing, the scanner delivers high-precision 3D measurement across massive parts — from medium-sized assemblies to ultra-large industrial components. Its design supports efficient scanning in complex or hard-to-reach environments, combining speed, accuracy and mobility.

Key Metrics at a Glance

- System Accuracy: up to 0.075 mm (Large FOV) / 0.030 mm (Medium‑Distance)

- Volumetric Accuracy: 0.075 mm + 0.010 mm/m

- Measurement Rate: up to 6,450,000 measurements/s

- Working Distance / Depth of Field: 0.30 m – 2.50 m

Highlights and Key Features

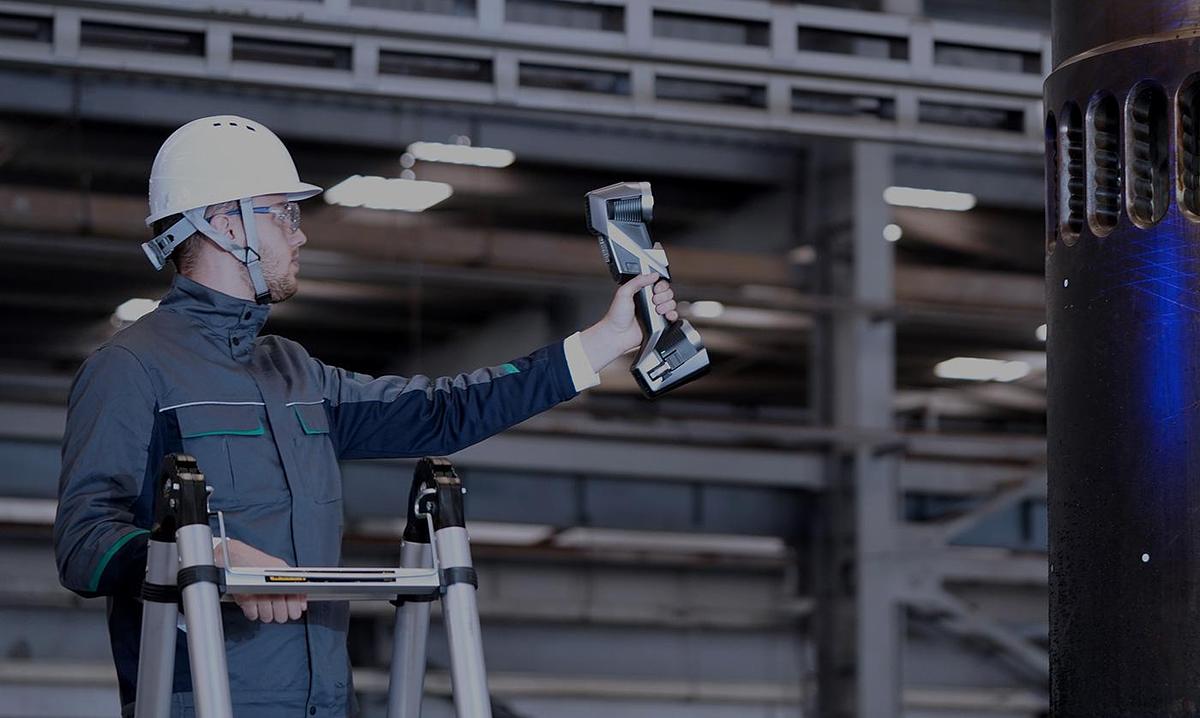

Completely Wireless

The scanner is cable-free, supported by a dual-battery system and Wi-Fi 6 connection, ideal for use at height or in remote areas.

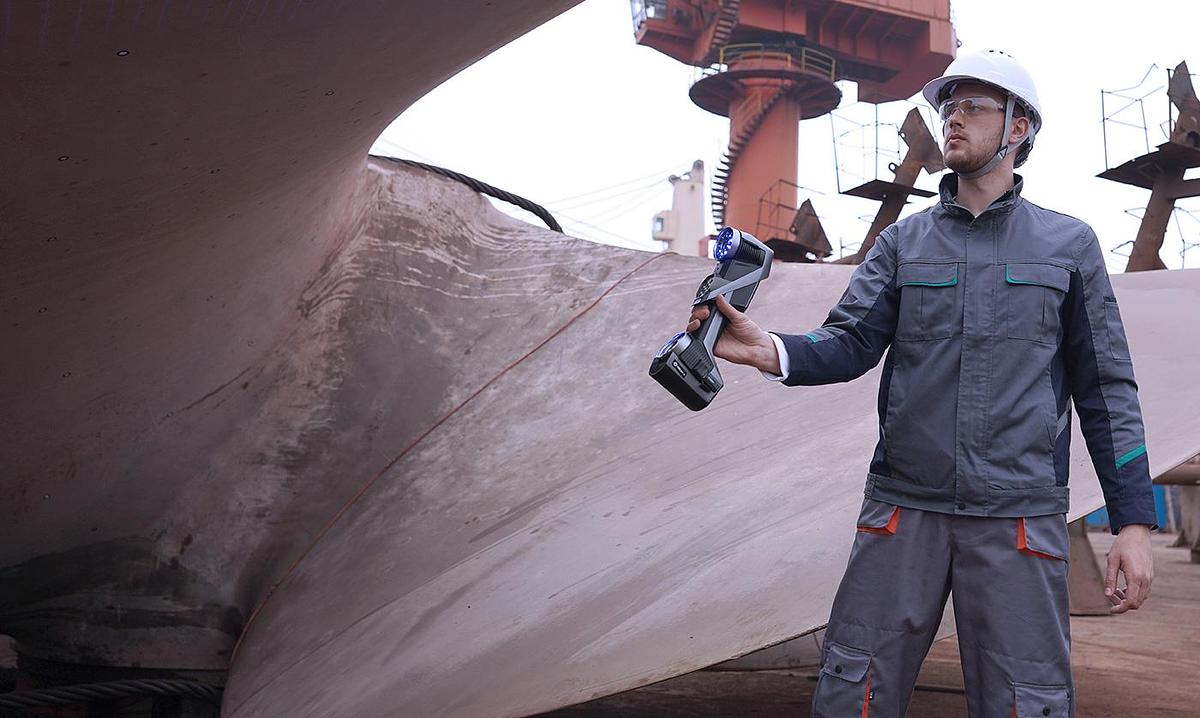

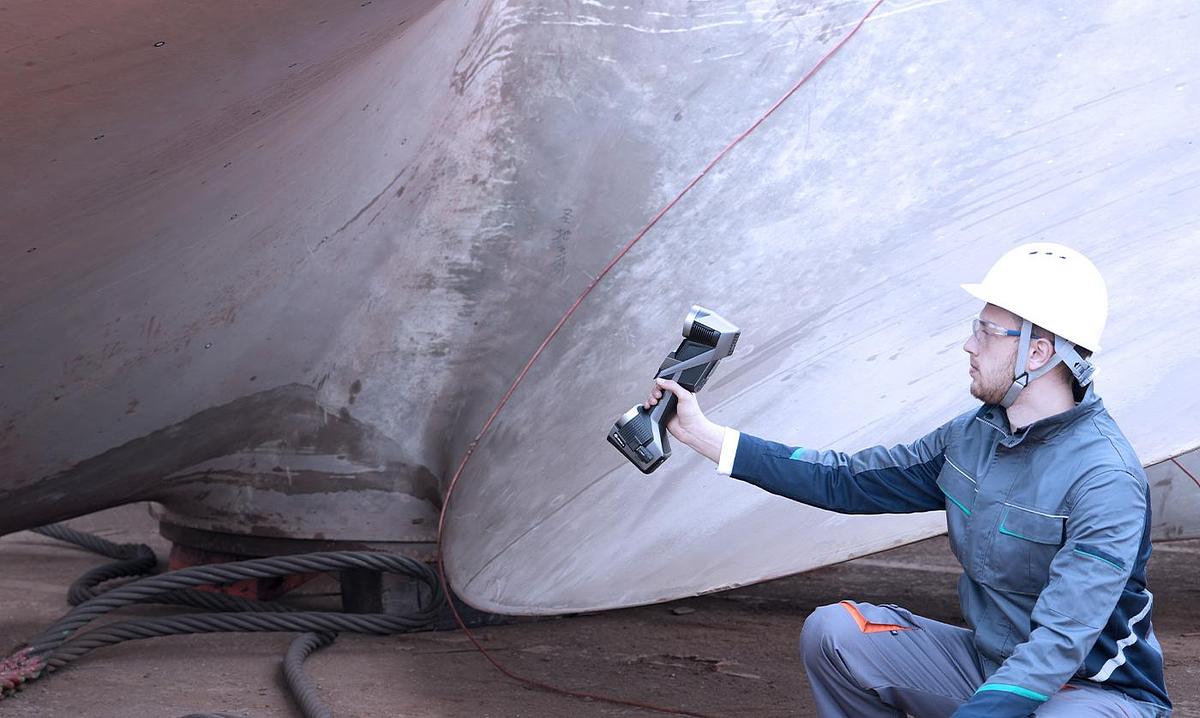

Ultra-Large Scanning Area

Field of view up to 2.6 m × 1.8 m allows scanning of very large components in a single pass.

Extended Depth of Field

Working distance ranges from 0.30 m up to 2.50 m, providing flexibility for parts of different sizes and shapes.

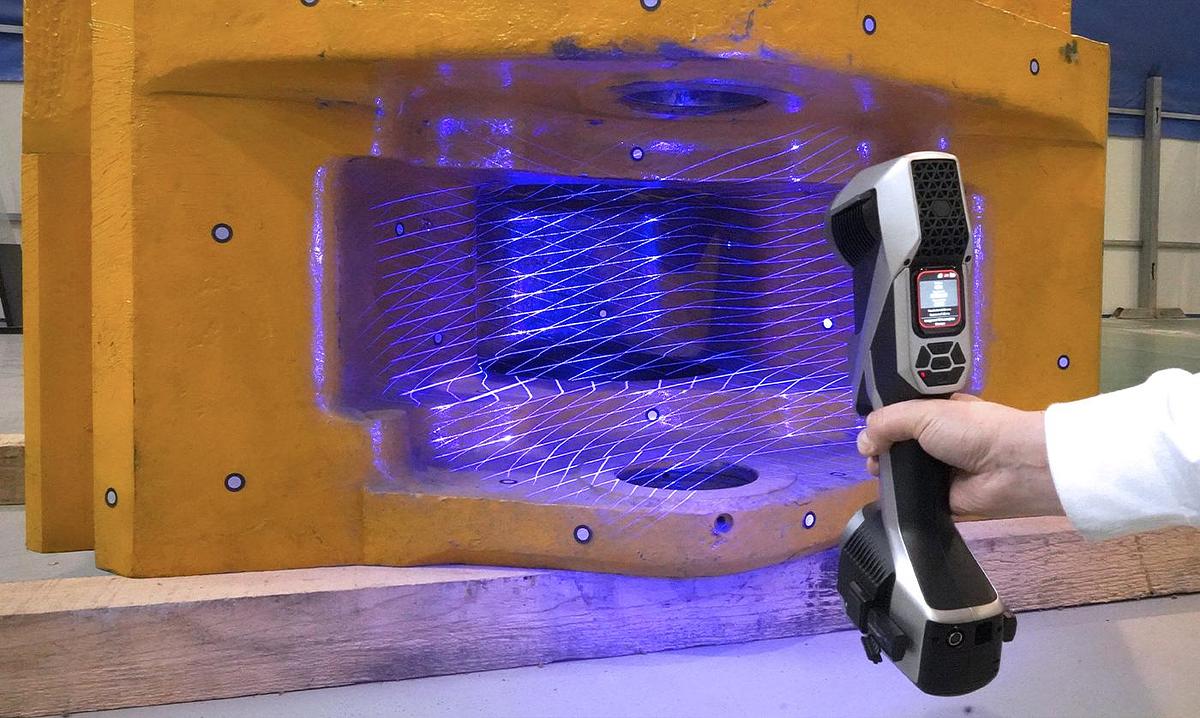

High-Speed Quad‑Cross Blue Lasers

Uses 4 × 21 blue laser lines (quad-cross) with high frame-rate capture (up to 180 FPS) for rapid scanning with minimal markers.

Adaptive Photogrammetry

Maintains volumetric accuracy over long distances, compensating for cumulative errors during large-scale scans.

Different Scan Modes

- Large‑FOV mode: 84 laser lines for very large parts

- Medium‑distance mode: 54 lines, optimised for 0.5 m – 2 m parts with 0.030 mm accuracy

- Deep‑hole mode: single extra line for internal or recessed features

Reduced Markers

Fewer markers required due to laser configuration and photogrammetry, allowing smoother, faster scanning.

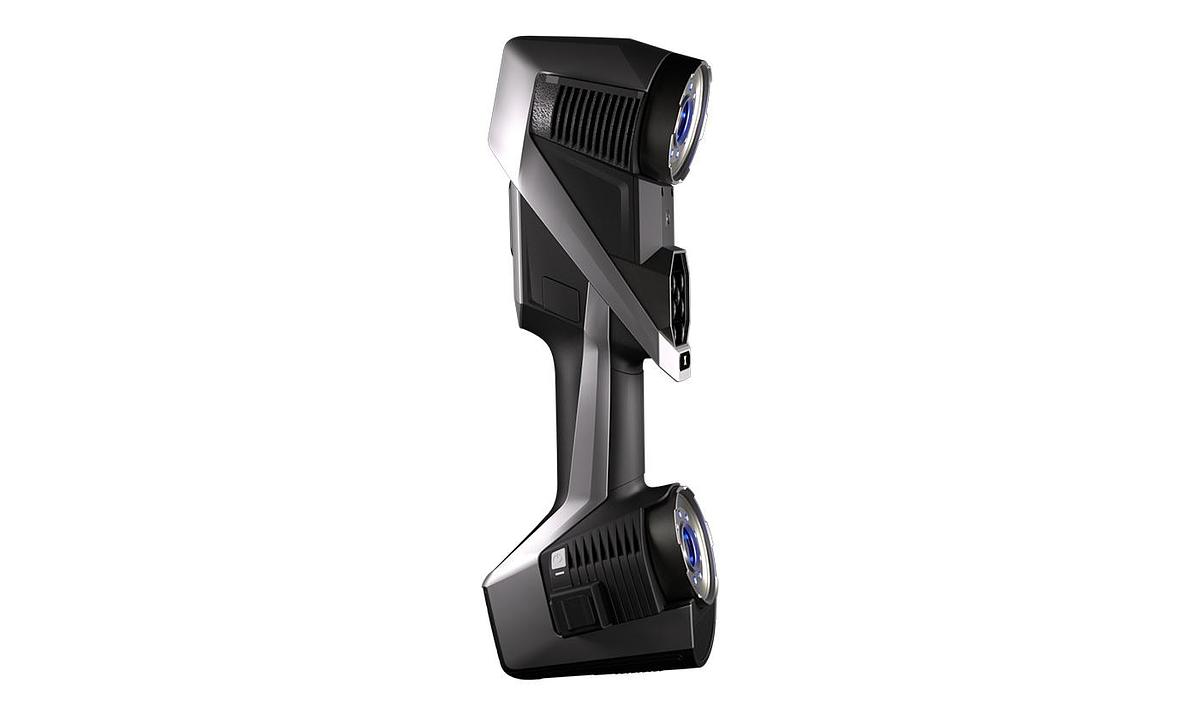

Ergonomic & Portable Design

Lightweight handheld frame with touchscreen interface, smart guidance, customisable buttons, and protective case for transport.

Quick Calibration

Can be calibrated in approximately 20 seconds, allowing efficient on-site setup.
