SCANOLOGY NIMBLETRACK GEN 2

Wireless Optical 3D Scanner

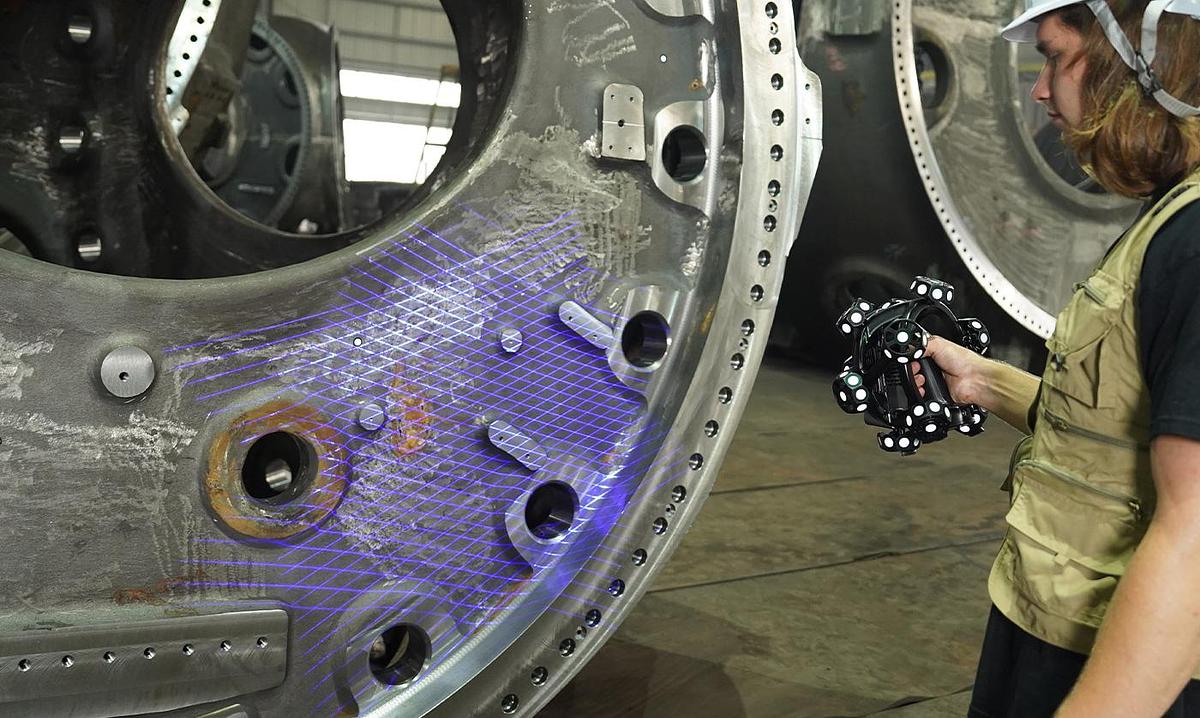

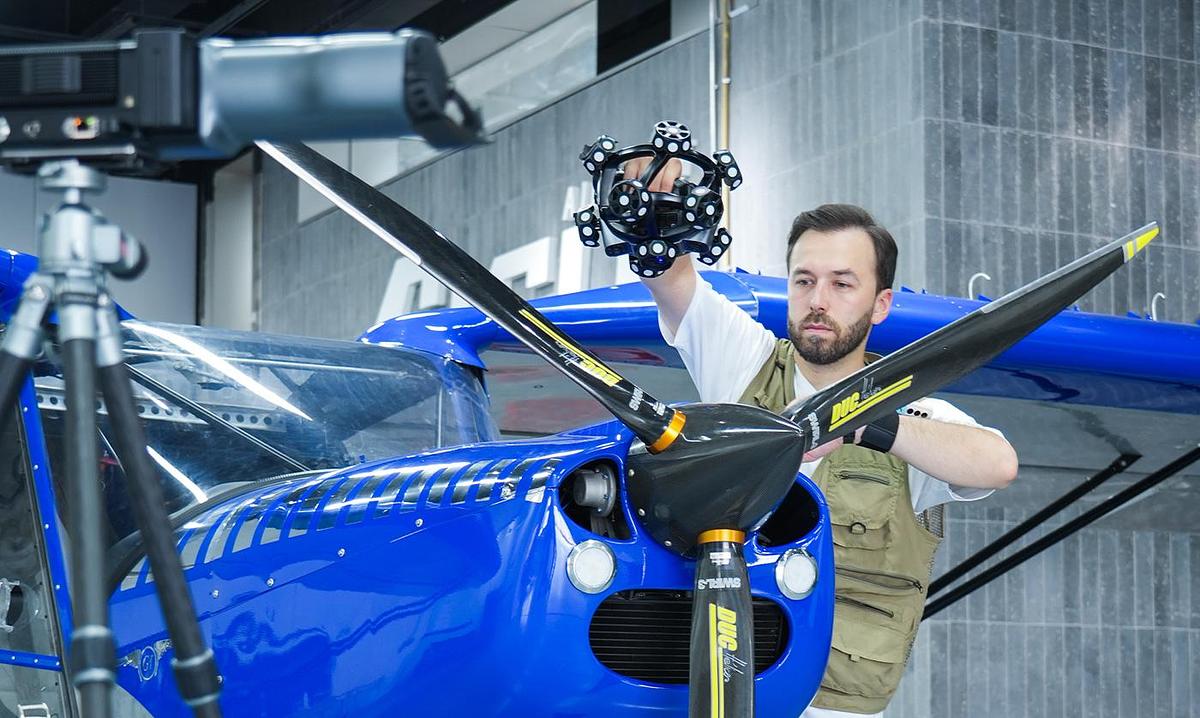

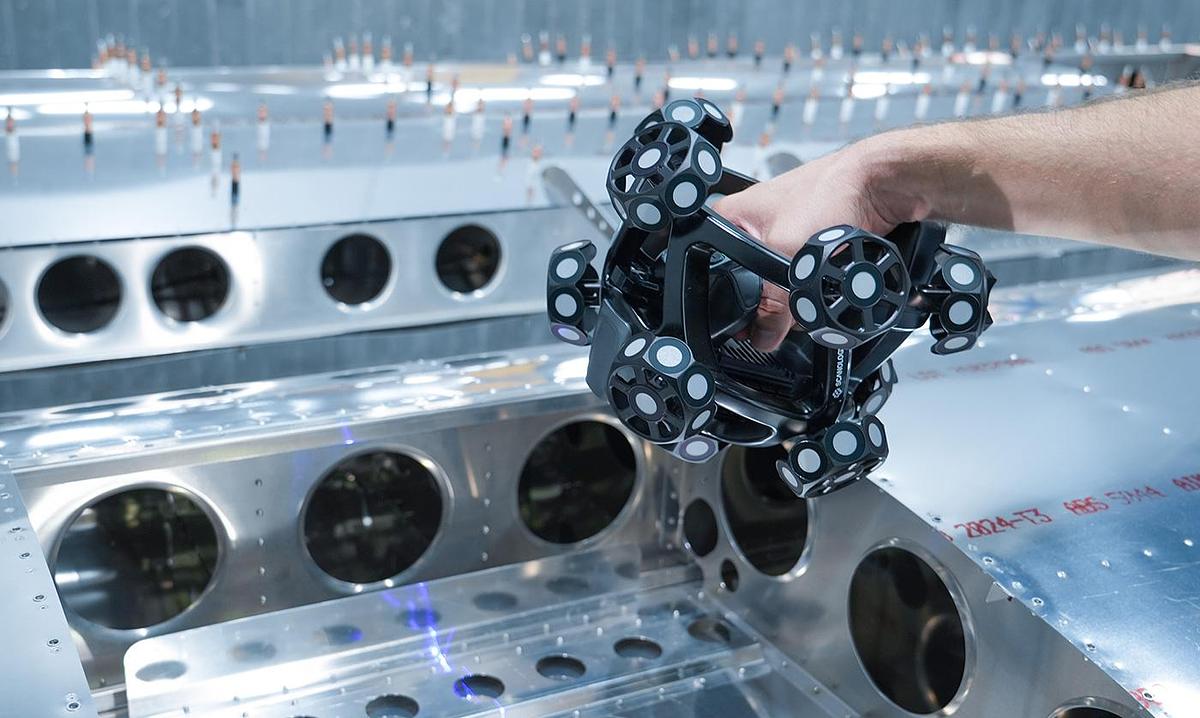

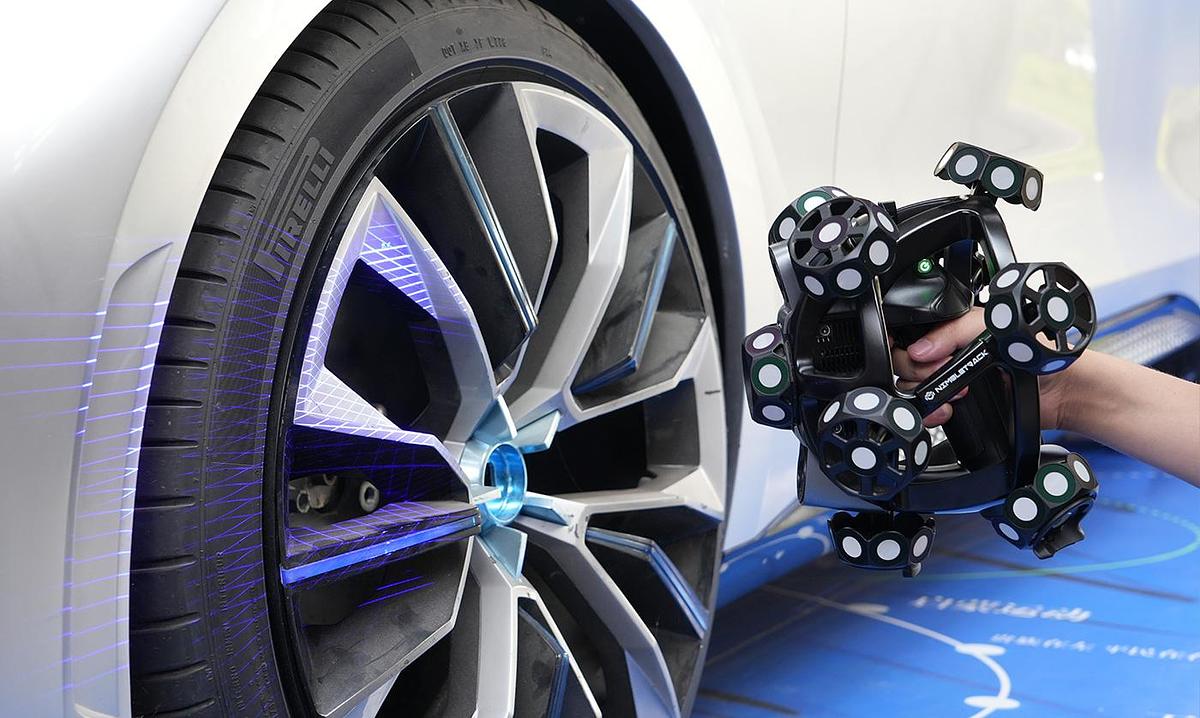

NimbleTrack Gen 2 is Scanology’s next-generation wireless optical 3D scanning system. It combines a handheld scanner with an optical tracker to provide marker-free, high-precision measurements for small components and large complex assemblies. Fully wireless operation and advanced edge-computing enable fast, flexible scanning in demanding industrial and field environments.

Key Metrics at a Glance

- System Accuracy: up to 0.025 mm

- Tracking Distance: up to 4.2 m

- Measurement Rate: up to 6.63 million measurement/s

- Handheld Weight: 1.3 kg (Net weight)

- Laser Lines: 54

Highlights and Key Features

True Wireless Operation

The scanner and tracker operate without cables, supported by high-performance batteries and edge-computing hardware. Ideal for remote or confined scanning environments.

Five Scan Modes

Ultra‑fast: 54 blue laser lines

Hyperfine: 17 parallel blue laser lines

Deep‑Hole: 1 blue laser line

Large Area: 54 blue laser lines

Photogrammetry: Adaptive photogrammetry

Ultra-Fast Scanning

Achieves 120 FPS and up to 6.63 million measurements per second using 54 blue laser lines, delivering rapid capture without sacrificing detail.

High Precision

Metrology-grade hardware with in-house developed algorithms provides system accuracy up to 0.025 mm.

Flexible Dual Modes

Tracker doubles as a handheld wide-area scanner via integrated laser projection, enabling large part capture while maintaining precision.

Adaptive Photogrammetry

Eliminates cumulative errors to maintain consistent accuracy across both long and short measurement distances, delivering precise results for large-scale and detailed measurements.

Stable Lightweight Design

Carbon Fibre Frame Integrated Moulding (CFFIM) construction provides strength, thermal stability, and portability.

Edge Inspection Module

Optional module for precise edge detection including holes, slots, and edges using grey-value measurement.

Probe Compatibility

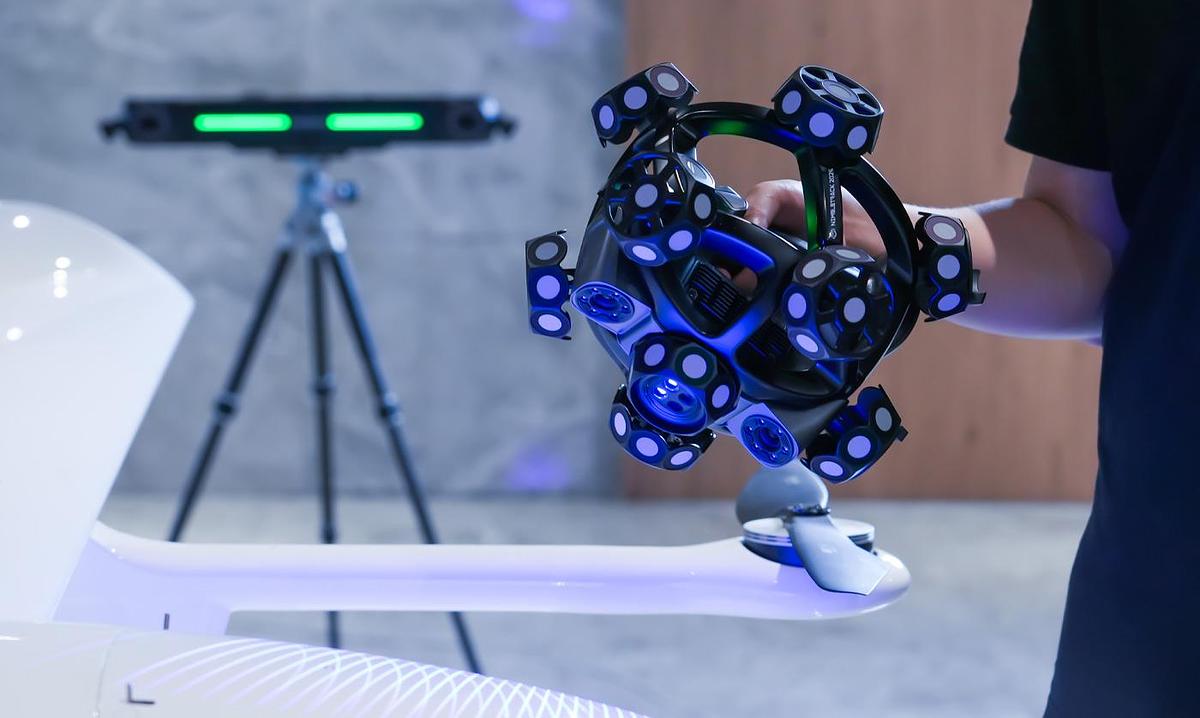

Supports wireless i-Probe for contact measurement of hard-to-reach areas.

Extended Measurement Range

Additional tracker can be added to expand the scanning volume for larger assemblies.

Dual Power Design

Tracker uses dual battery modules with advanced power management for uninterrupted operation.

Model Variants

NimbleTrack‑C Gen 2

Tracking Distance: 3.5 m

Volumetric Accuracy: 0.060 mm at 3.5 m

Measurement Rate: up to 6,630,000 measurement/s

NimbleTrack‑E Gen 2

Tracking Distance: 4.2 m

Volumetric Accuracy: 0.072 mm at 4.2 m

Measurement Rate: up to 6,630,000 measurement/s

Please contact us for a full breakdown of differences between the NimbleTrack‑C Gen 2 and NimbleTrack‑E Gen 2 models so we can advise the best model variant for your requirements.
