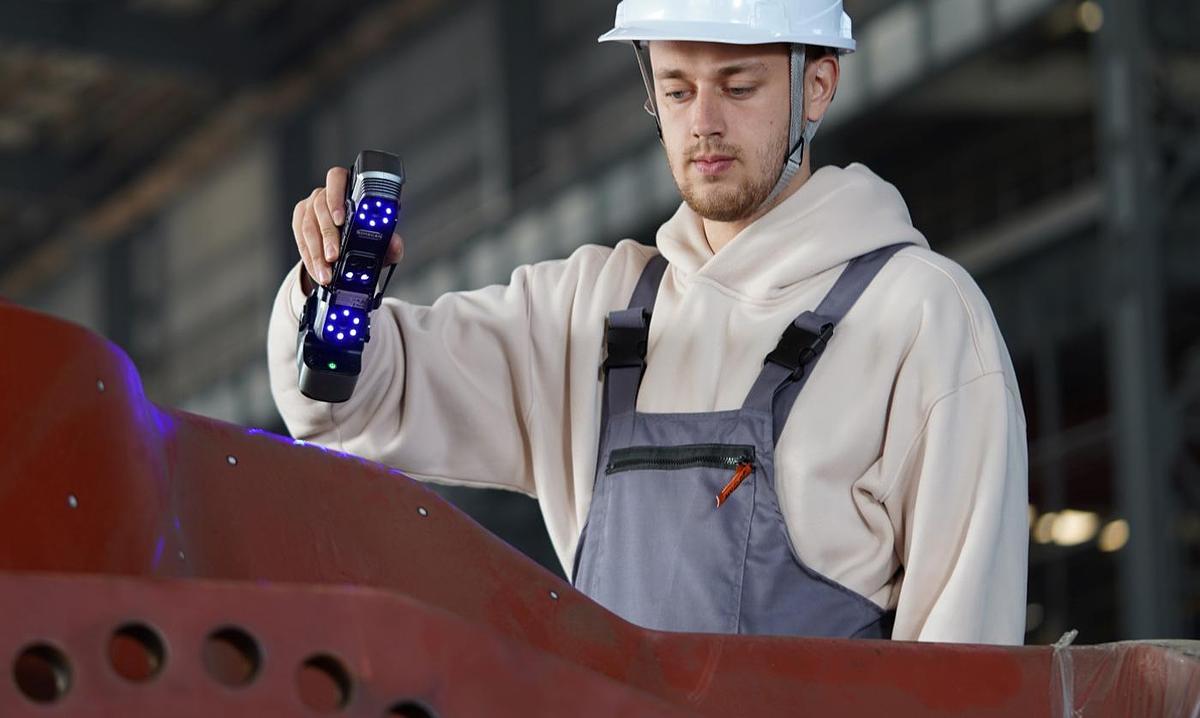

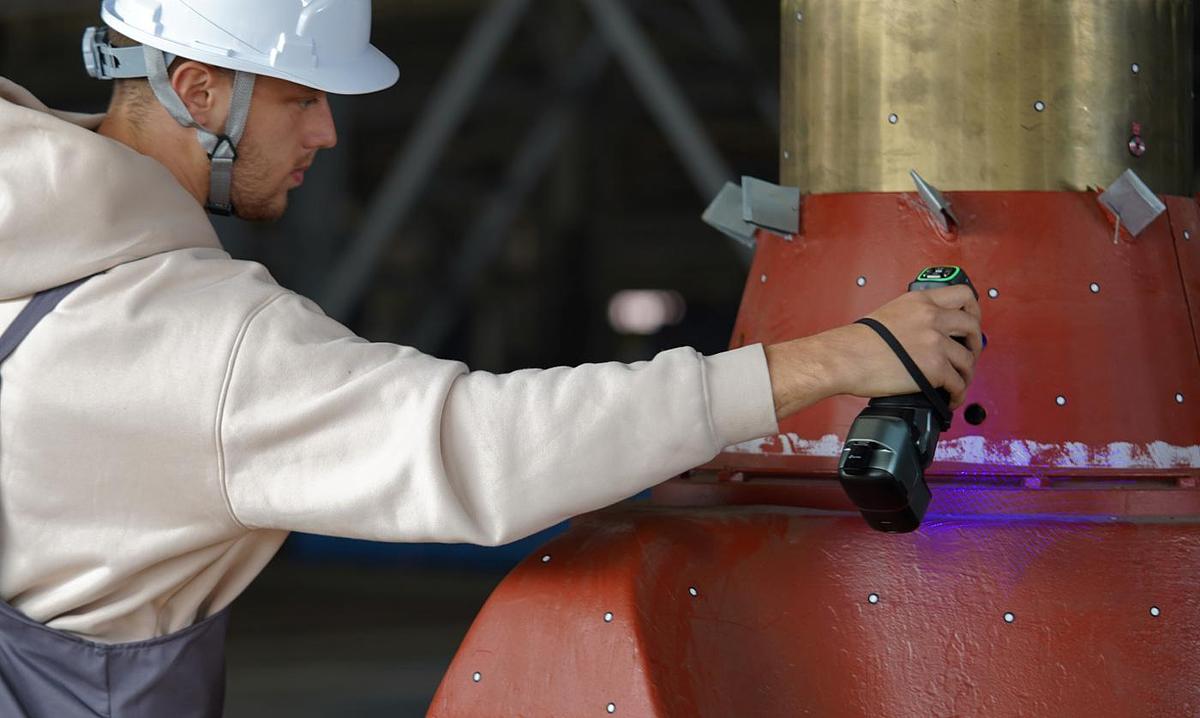

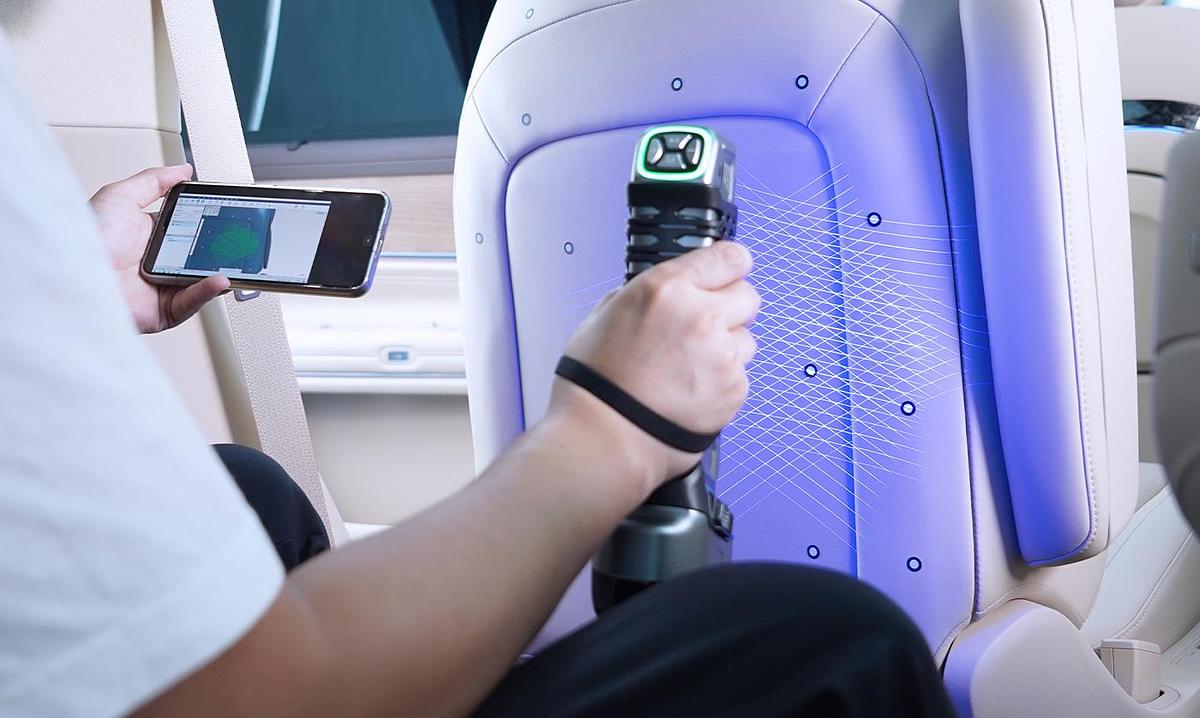

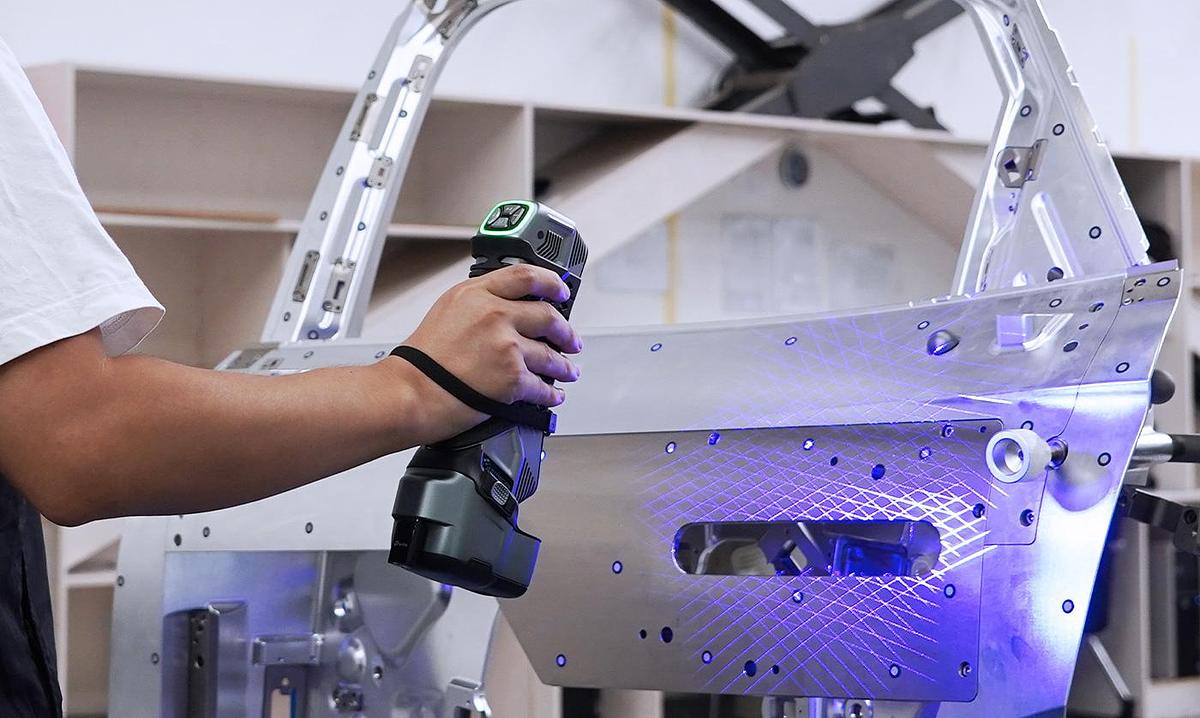

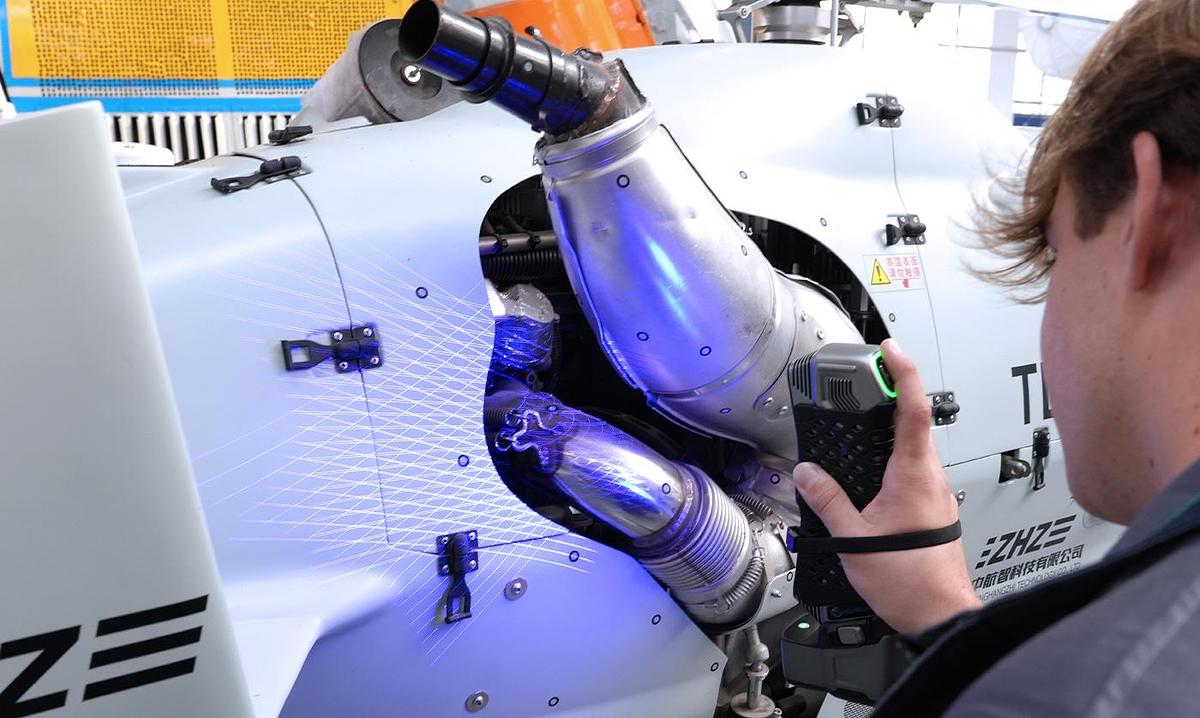

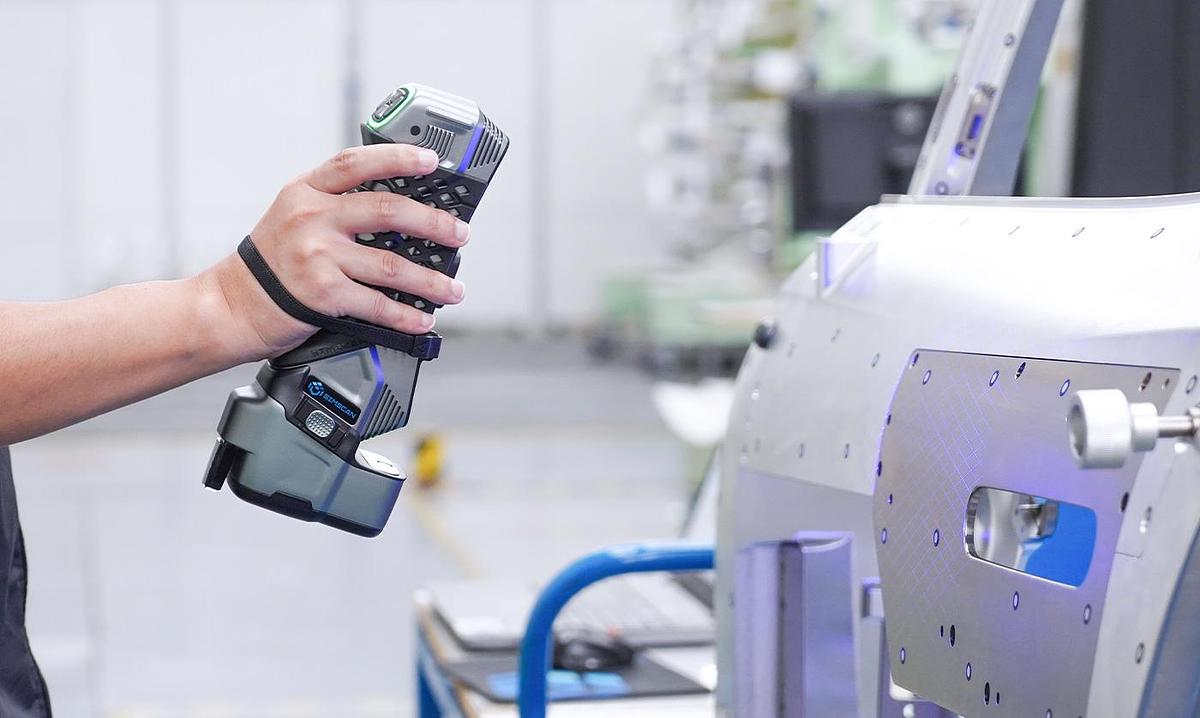

SCANOLOGY SIMSCAN‑E

High-Precision Wireless 3D Scanner for Medium to Large Parts

SIMSCAN‑E is Scanology’s intelligent, wireless, palm-sized 3D scanner with built-in edge computing and Wi‑Fi, designed for portable, high-precision scanning in tight or remote environments. Lightweight and compact, it allows one-handed operation while delivering metrology-grade performance.

Key Metrics at a Glance

- Accuracy: up to 0.020 mm

- Measurement Rate: up to 6.3 million measurements/s

- Volumetric Accuracy (Standard): 0.015 mm + 0.035 mm/m

- Volumetric Accuracy (with MSCAN‑L15): 0.015 mm + 0.012 mm/m

- Handheld Weight: 600 g

Highlights and Key Features

Adaptable Use

Switch easily between wired and wireless modes with a detachable charging base.

Three Scan Modes

Ultra‑fast: 63 blue laser lines for efficient scanning to evaluate the geometry and dimensions of parts quickly.

Hyperfine: 17 parallel blue laser lines for swift detail capturing of intricate features and complex structures.

Deep‑Hole: 1 blue laser line for measuring deep holes and hard-to-reach areas.

High-Speed Scanning

Captures up to 6.3 million measurements/s with 180 FPS frame rate.

Portable & Ergonomic

Lightweight, one-handed full-metal body (203 × 80 × 44 mm) allows flexible scanning.

Long Lasting Power

Dual batteries allow hot-swapping for continuous operation.

View tech sheet

Authorised Scanology UK Reseller

As an authorised Scanology reseller, we’re able to provide support to our customers to make sure they get the very best from their equipment. We work hard to understand every aspect of the equipment and software, so we’re always happy to answer any questions you might have.
