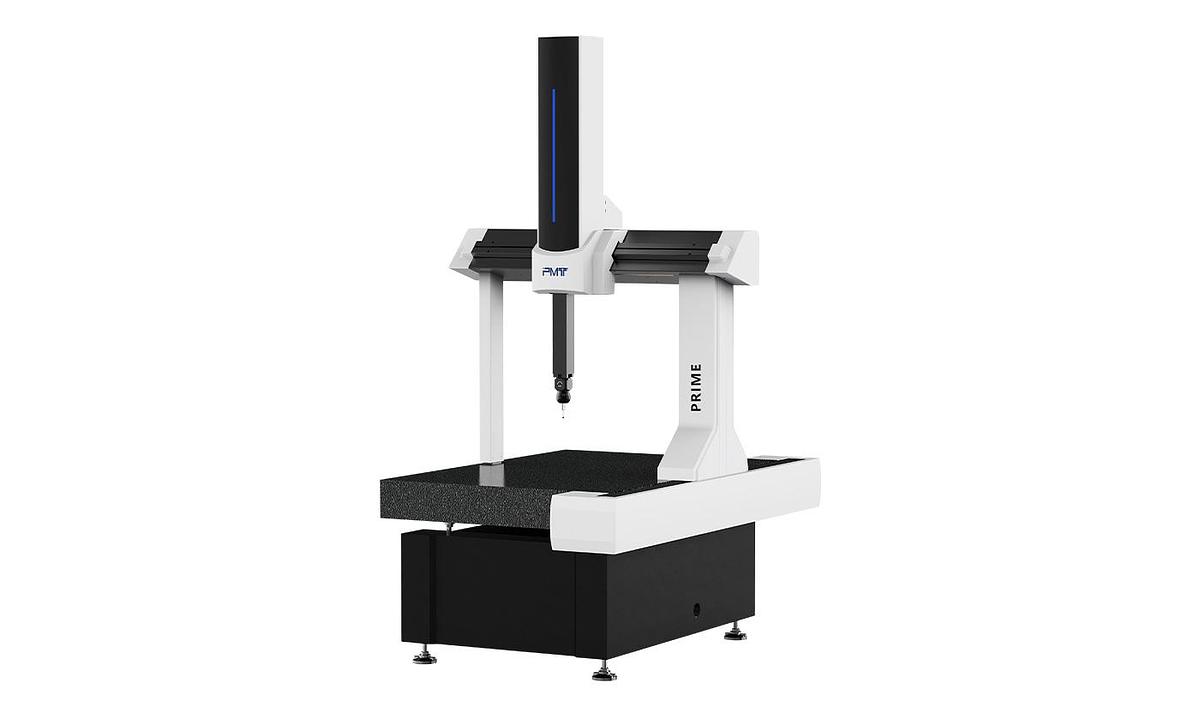

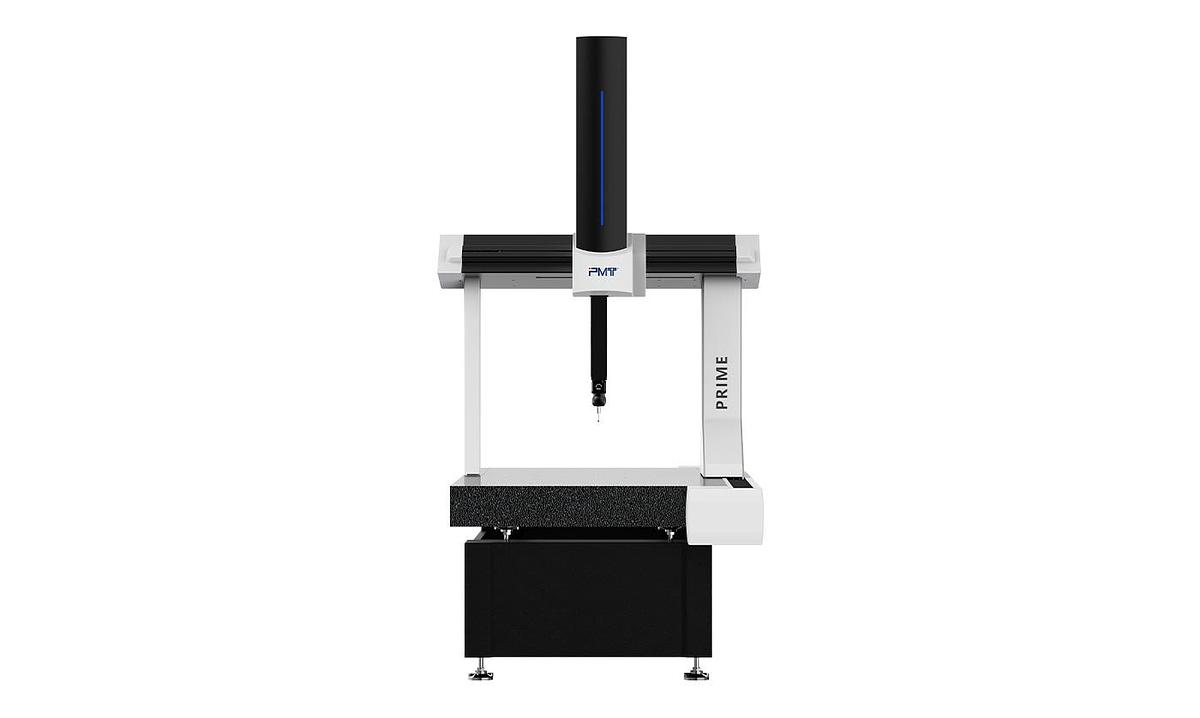

PMT PRIME CMM

HIGH-END PRECISION MEASUREMENT

With the structure of an equilateral triangle beam and an aviation aluminium alloy frame, the PMT PRIME Bridge CMM has the best structural rigidity ratio, aiming to provide customers with higher accuracy, long-term stability and higher dynamic function. With this level of performance, the PMT CMM provides high precision, high stability and high efficiency measuring solutions for production sites, R&D centres and metrology labs and is widely used in automotive, mould, machining, precision manufacturing, metrology institutes, aerospace and other fields.

Technical Features

Structure Advantages

The advanced photoelectric incremental grating scale combined with the precision transmission mechanism ensures micron level accuracy in the measurement process as well as the stability and repeatability of the measurement results.

Stable Granite Platform

Natural high quality granite table with excellent temperature stability and rigidity, effectively resisting deformation.

Structure of Equilateral Triangle Beam

The aluminium alloy beam with an equilateral triangle structure has good thermal balance and isotropy to ensure the coordinate measuring machine can run smoothly.

Flexible Synchronous Belt Drive

The flexible synchronous belt with built-in steel wire takes into account flexible meshing and rigid axial transmission, which eliminates vibration and jitter during movement and ensures good high-precision positioning performance of the coordinate measuring machine.

Flexible Pneumatic Balance Technology

Avoids the influence of the balance cylinder on the accuracy during operation, improving the accuracy of measurement and ensuring long-term stability.

Overall Lightweight and High Strength Structure

The overall lightweight and high-strength design ensures the machine achieves good accuracy during high-speed measurement and improves measurement efficiency.

Dustproof and Protective Design

Protective covers and doors ensure safety and reliability during the measurement process.

Flexible Performance

Intelligent Measurement Software

Provides extensive measurement functions and data processing capabilities and supports a range of measurement modes to meet different measurement needs.

Versatile Probe Selections

There are a variety of probe options including contact probes and non contact probes. This supports different inspection needs for various shapes and dimensions.

Efficient Dynamic Measurement Performance

The PMT PRIME CMM offers efficient dynamic measurement performance with joystick operation speeds up to 0–20 mm/s (slow mode) and 0–100 mm/s (normal mode), single axis speeds up to 300 mm/s in CNC mode and space speeds up to 520 mm/s.

Advanced Temperature Compensation Technology

Monitors and compensates for measurement error caused by temperature changes in real time.
