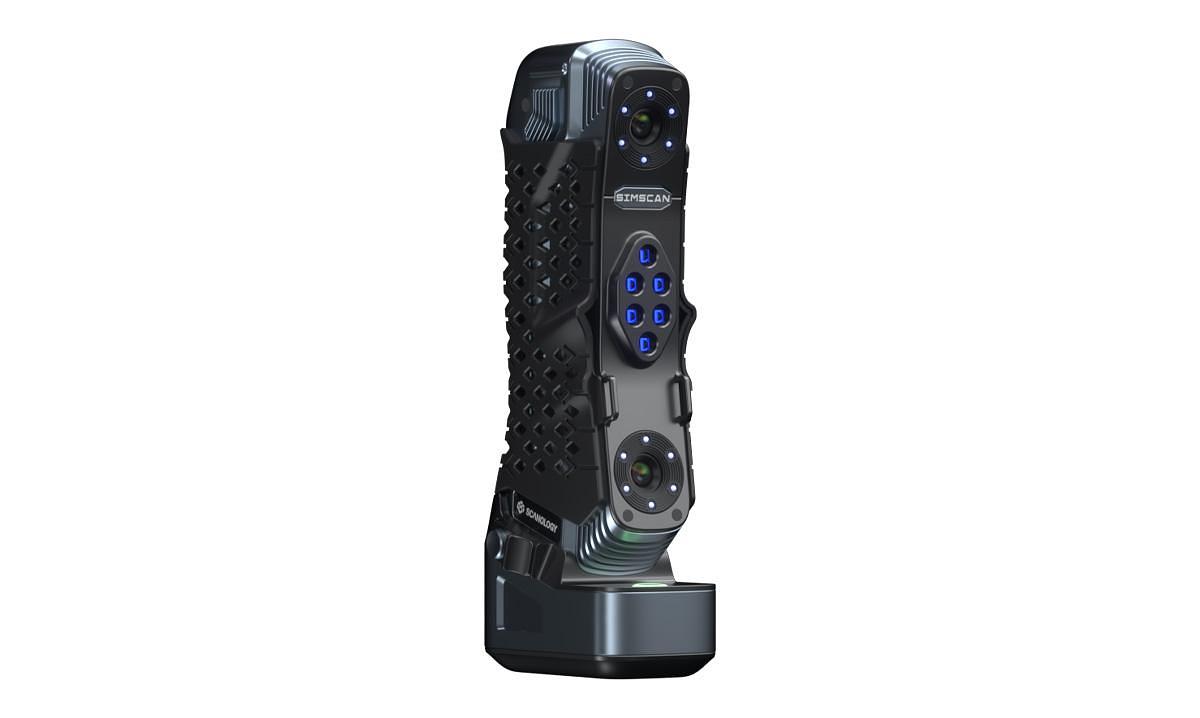

SCANOLOGY SIMSCAN-S GEN2

Palm-Sized 3D Scanner with High Accuracy - Confidence in Every Critical Surface

The Scanology SIMSCAN-S Gen2 is a palm-sized 3D scanner designed for high-accuracy measurement and detailed data capture. It combines wireless operation, ultra-fast scanning speeds and flexible operating modes.

Accuracy is strengthened through robust algorithms and advanced craftsmanship. By incorporating sphericity and flatness into its accuracy control, the scanner maintains precision at its core while supporting reliable geometric fidelity and detailed measurement data.

Designed for complex components and precision machined parts, the Scanology SIMSCAN-S Gen2 helps make precision 3D scanning faster, more detailed and more reliable than ever.

Go Lighter. Go Wireless

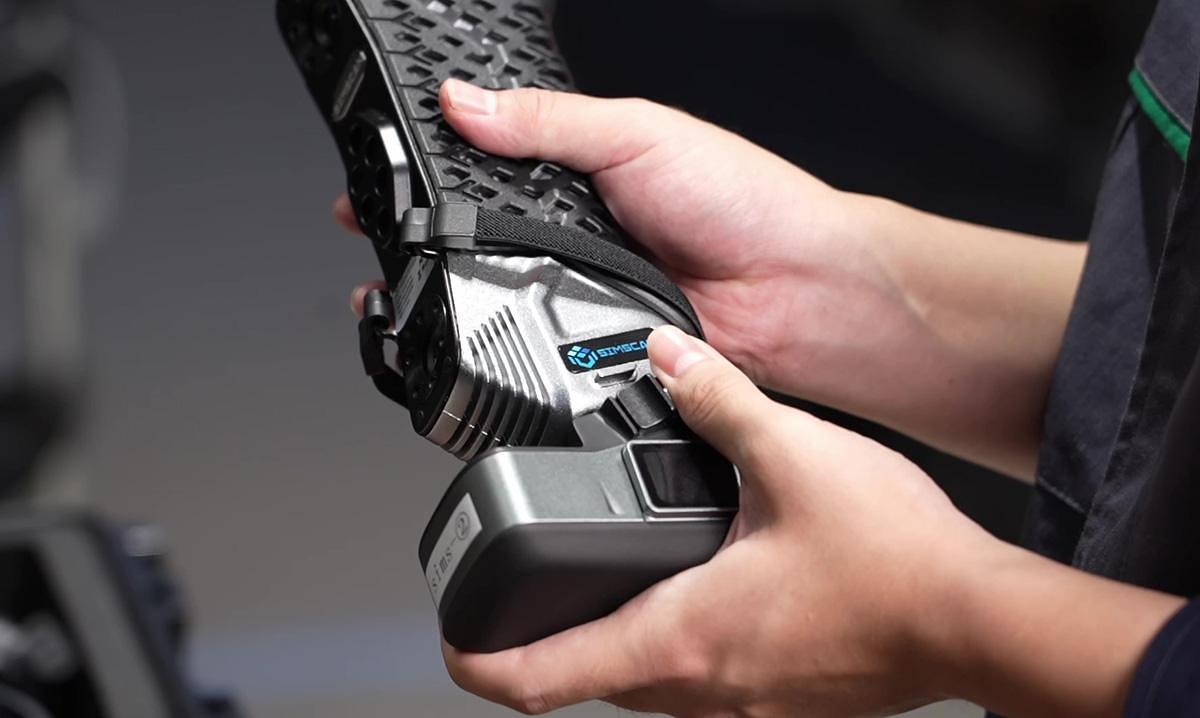

Work freely with a lightweight and fully wireless 3D scanner. The magnesium-alloy housing keeps the device weight to just 560 g, making it comfortable to handle during longer scanning sessions.

Powered by edge computing and wireless data transfer, it provides true wireless freedom whether working in confined spaces or at height. Stable data transmission and efficient processing help ensure smooth and reliable operation throughout the workflow.

Compact and Easy to Use

The ergonomic design of the SIMSCAN-S Gen2, together with its detachable charging base, makes the scanner compact and easy to use.

An intuitive display lets you view and monitor data in real time. This helps you scan faster and work more efficiently.

From Accurate Measurement to Assured Geometry

Enhanced optics and advanced algorithms allow the SIMSCAN-S Gen2 to achieve an accuracy of 0.015 mm. With sphericity and flatness control, the scanner captures both dimensional accuracy and surface deviations.

The system ensures highly detailed measurements and strengthens verification at the feature level. It enables more dependable control of GD&T-critical characteristics, including functional surfaces, precision-machined features and assembly-defining geometries.

The SIMSCAN-S Gen2 complies with ISO 10360 and ensures measurement results you can trust worldwide.

Accuracy: 0.015 mm

Volumetric Accuracy: 0.015 + 0.03 mm/m

ISO Standard: ISO 10360

Sphericity: 0.025 mm

Flatness: 0.035 mm

Capture More. Scan Faster

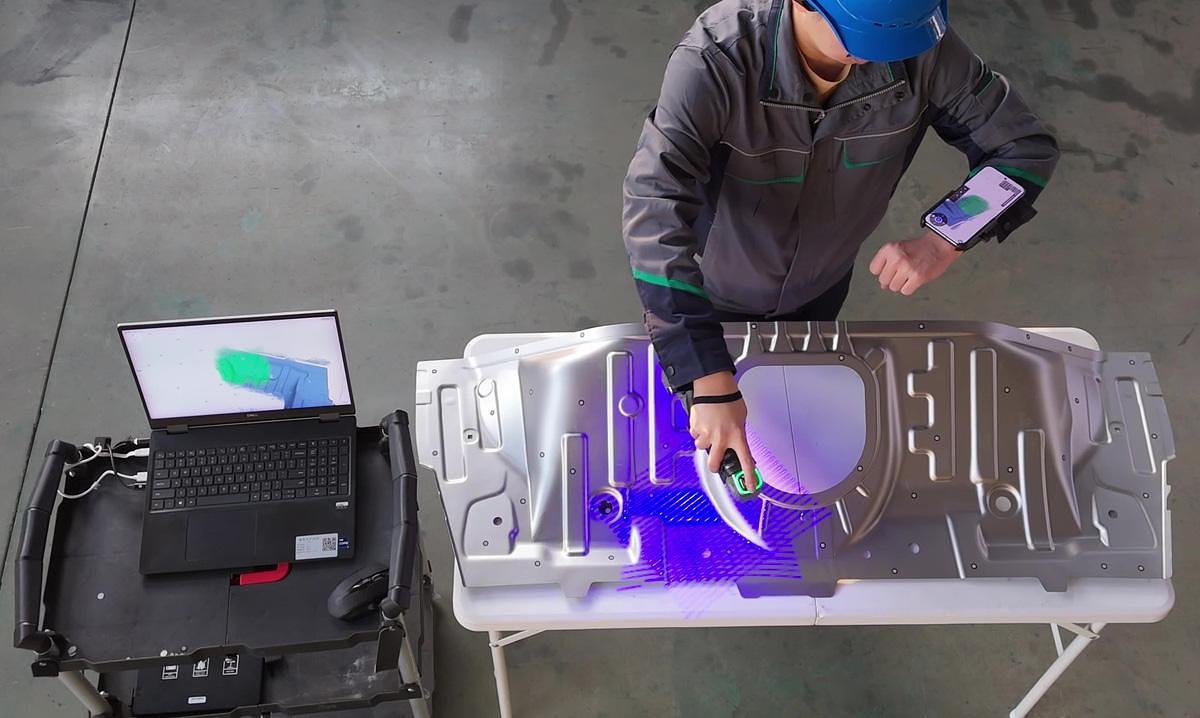

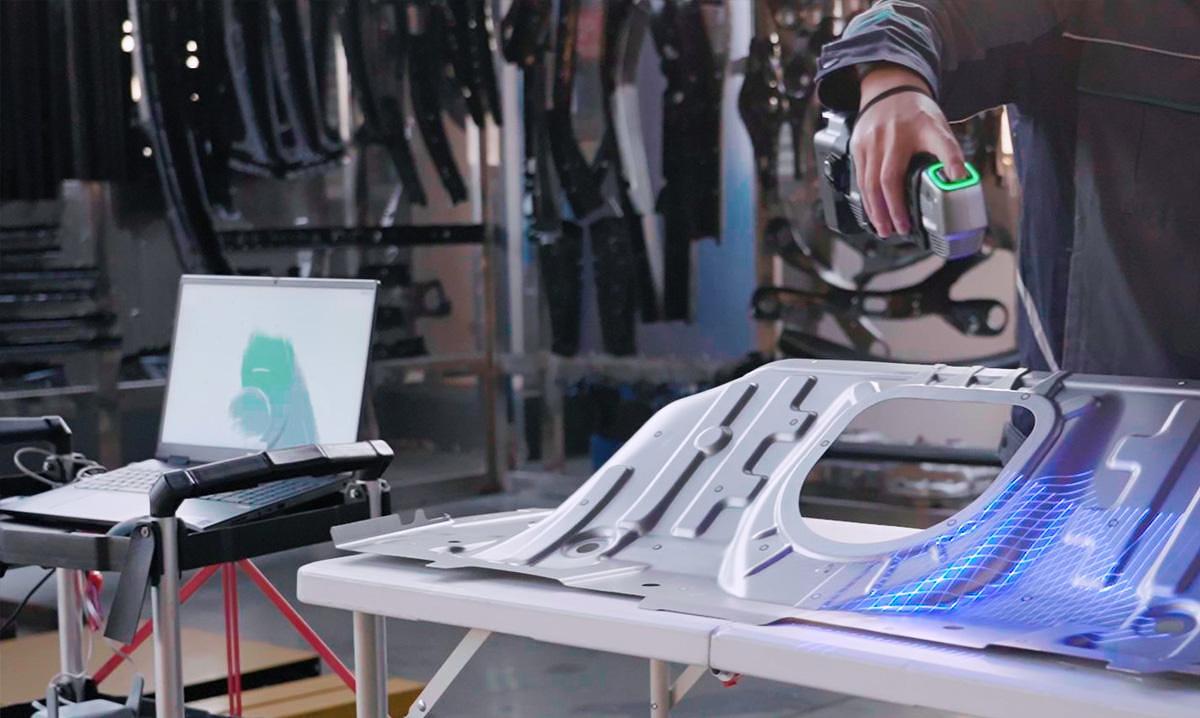

The SIMSCAN-S Gen2 handles complex components using 108 quad-crossed blue laser lines, delivering a measurement rate of up to 8,100,000 measurements per second and a frame rate of up to 180 FPS.

Large volumes of 3D data can be captured instantly while maintaining smooth scanning, helping maintain productivity even when working with demanding geometries.

Max Frame Rate: 180 FPS

Blue Laser Lines in Total: 126 lines

Max Measurement Rate: 8,100,000 measurements/s

Scan Where Others Can’t

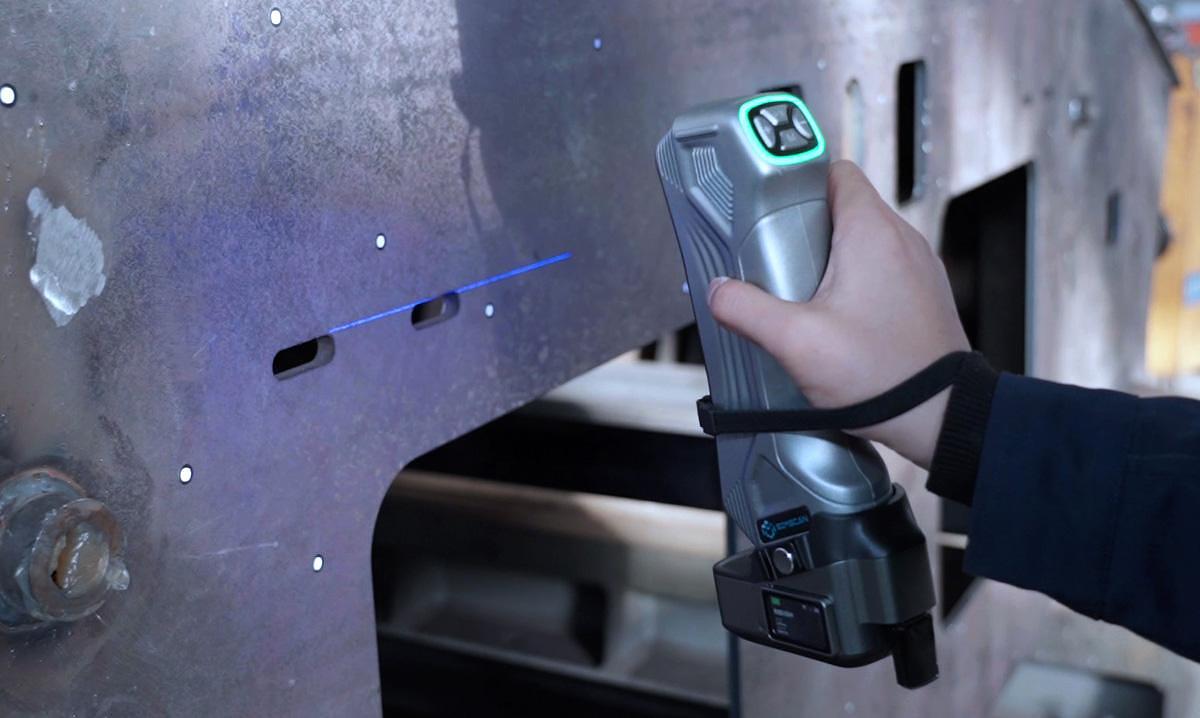

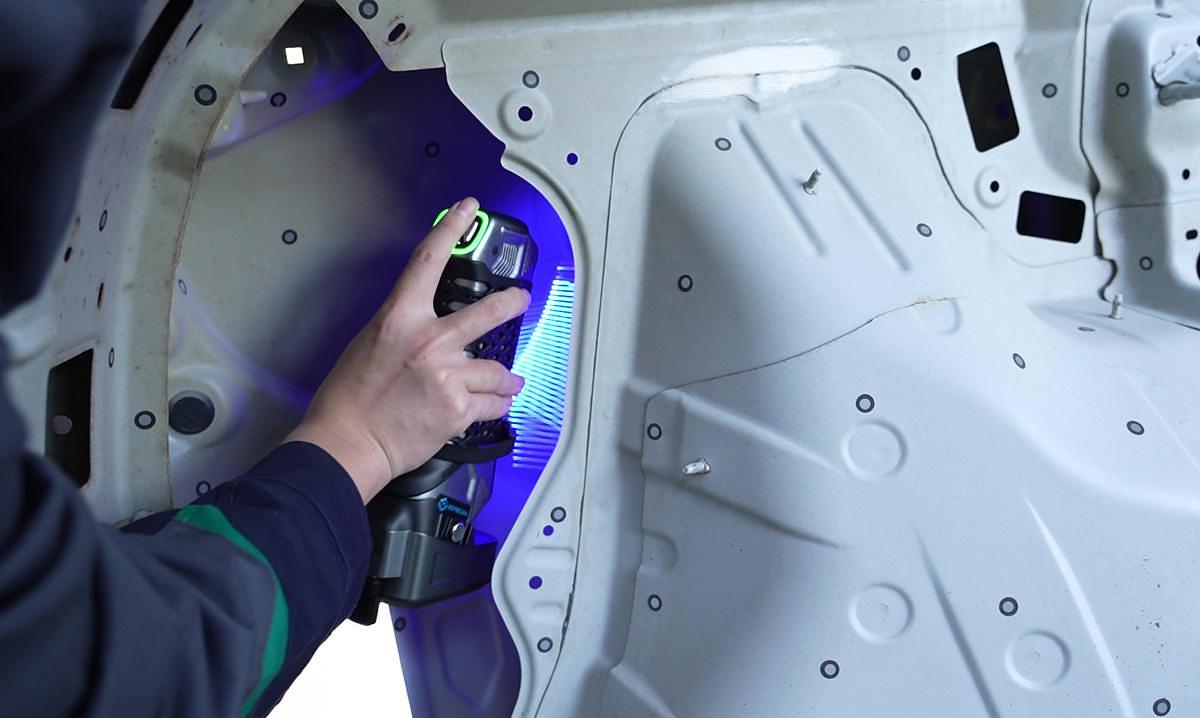

Reliable data capture is possible even in difficult-to-reach areas. The short-baseline camera design allows the SIMSCAN-S Gen2 to capture gaps, deep holes, slots and channels using a steep viewing angle.

This allows complete and accurate 3D data to be captured, even for complex parts, giving results you can trust for applications such as inspection, design and reverse engineering.

One Scanner. Any Job

The SIMSCAN-S Gen2 allows you to switch easily between ultra-fast scanning, hyperfine scanning and deep hole scanning modes.

Capture overall geometry in seconds, zoom in on fine details and capture hidden or deep features with confidence. One scanner adapts to different tasks without interrupting your workflow.

Work Smarter with DefinSight

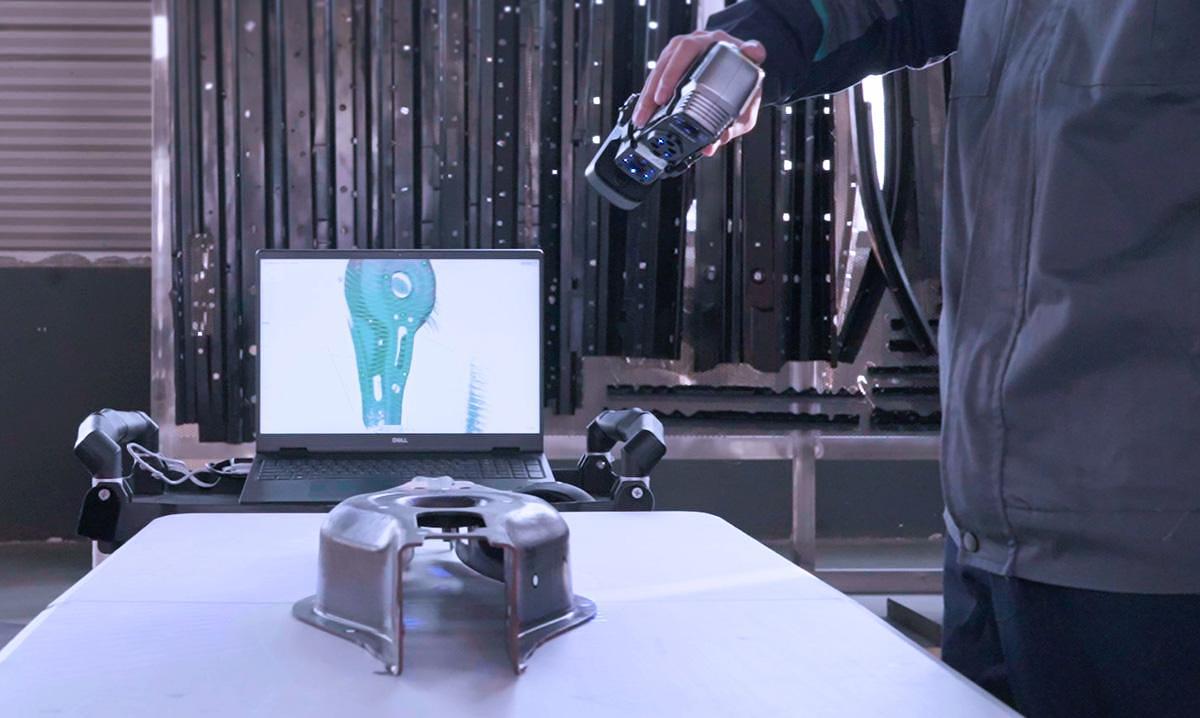

From scanning through to analysis, workflows can be handled in one place. DefinSight, Scanology’s all-in-one 3D digitisation software, is designed to keep processes simple, fast and intuitive.

By bringing scanning and analysis together, it helps reduce time spent processing data and allows you to spend more time making decisions.

View tech sheet

Authorised Scanology UK Reseller

As an authorised Scanology reseller, we’re able to provide support to our customers to make sure they get the very best from their equipment. We work hard to understand every aspect of the equipment and software, so we’re always happy to answer any questions you might have.
